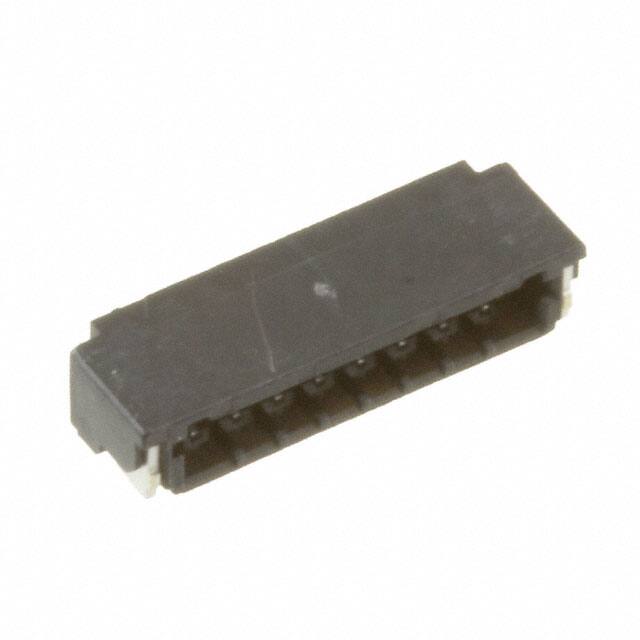

DF52-8S-0.8H(21)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Nominal Gerilim

100V

Parça Durumu

Active

Fastening Type

Detent Lock

Mixed Contacts

NO

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Insulation Color

Black

Contact Materials

Copper Alloy

Montaj Tipi

Surface Mount, Right Angle

Number Of Positions Loaded

All

Gender

Receptacle

Filter Feature

NO

Option

GENERAL PURPOSE

Pitch Mating

0.031 0.80mm

Terminal

Solder

JESD-609 Kodu

e3

Connector Type

Socket

Contact Type

Non-Gendered

Sıra Sayısı

1

Total Number Of Contacts

8

Insulation Height

0.069 1.75mm

Ambalaj

Tape & Reel (TR)

Montaj

Surface Mount

Iec Conformance

NO

ECCN Kodu

EAR99

Style

Board to Cable/Wire

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

8

Current Rating Amps

1.5A

Özellikler

Glow Wire Compliant, Solder Retention

Seri

DF52

Çalışma Sıcaklığı

-40°C~85°C

Fabrika Tedarik Süresi

11 Weeks

Din Conformance

NO
