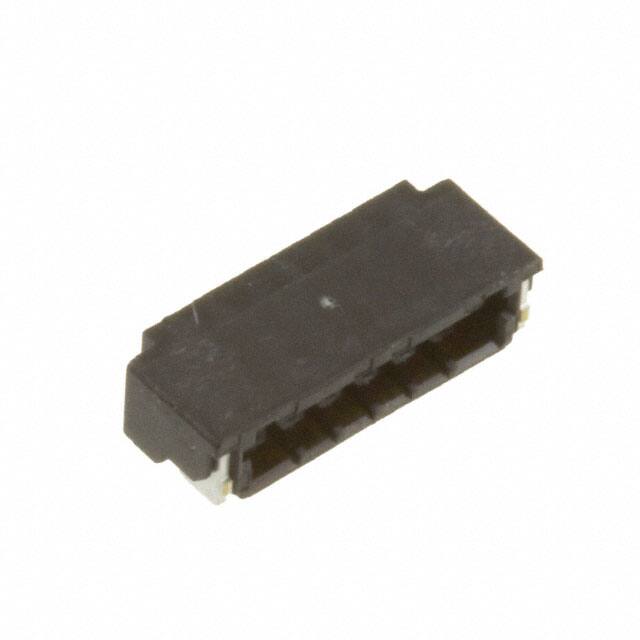

DF52-6S-0.8H(21)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

100V

Parça Durumu

Active

Contact Finish Mating

Tin

Fastening Type

Detent Lock

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Mixed Contacts

NO

Insulation Color

Black

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount, Right Angle

Contact Materials

Copper Alloy

Terminal Adımı

0.8mm

Gender

Receptacle

Filter Feature

NO

Option

GENERAL PURPOSE

Pitch Mating

0.031 0.80mm

Terminal

Solder

JESD-609 Kodu

e3

Connector Type

Socket

Contact Type

Non-Gendered

Sıra Sayısı

1

Total Number Of Contacts

6

Ambalaj

Tape & Reel (TR)

Insulation Height

0.069 1.75mm

Iec Conformance

NO

Montaj

Surface Mount

Style

Board to Cable/Wire

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Current Rating Amps

1.5A

Özellikler

Glow Wire Compliant, Solder Retention

Pozisyon Sayısı

6

Seri

DF52

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-40°C~85°C

REACH Uyumluluk Kodu

unknown

Din Conformance

NO
