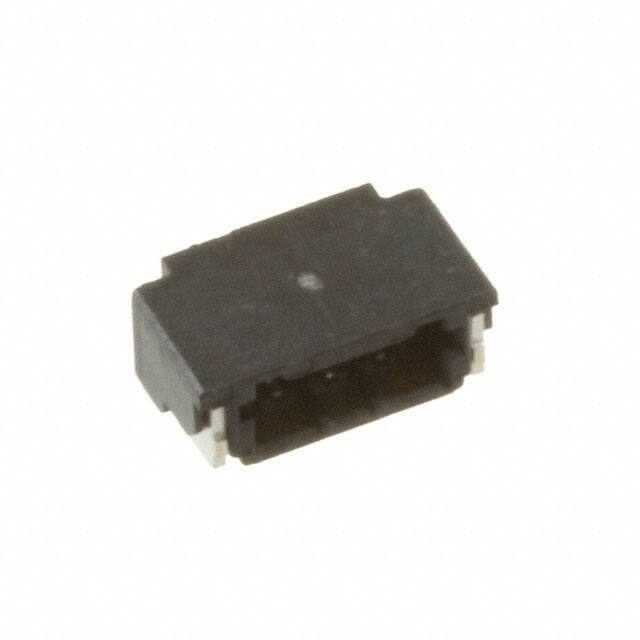

DF52-3S-0.8H(21)

Teknik Özellikler

Iec Conformance

NO

Contact Type

Non-Gendered

Insulation Color

Black

Ul Flammability Code

94V-0

Contact Materials

Copper Alloy

Özellikler

Glow Wire Compliant, Solder Retention

Mil Conformance

NO

Current Rating Amps

1.5A

Connector Type

Socket

Number Of Positions Loaded

All

Nominal Gerilim

100V

Total Number Of Contacts

3

RoHS Durumu

RoHS Compliant

Pitch Mating

0.031 0.80mm

Terminal

Solder

Parça Durumu

Active

Sıra Sayısı

1

Montaj

Surface Mount

Pozisyon Sayısı

3

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Terminal Adımı

0.8mm

Fastening Type

Detent Lock

Çalışma Sıcaklığı

-40°C~85°C

Material Flammability Rating

UL94 V-0

Insulation Height

0.069 1.75mm

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Seri

DF52

Mixed Contacts

NO

Option

GENERAL PURPOSE

Filter Feature

NO

ECCN Kodu

EAR99

Contact Gender

FEMALE

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown
