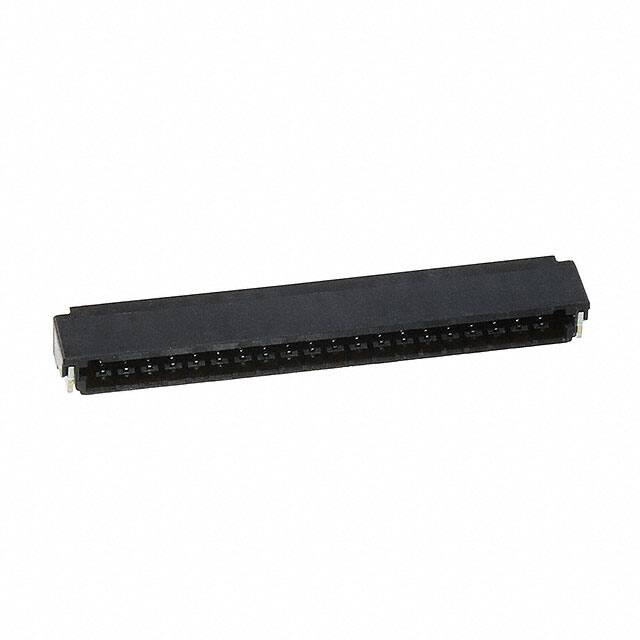

DF52-20S-0.8H(21)

Teknik Özellikler

Insulation Height

0.069 1.75mm

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Seri

DF52

Mixed Contacts

NO

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Filter Feature

NO

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1

Pozisyon Sayısı

20

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Mating

Tin

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

0.8mm

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~85°C

Fastening Type

Detent Lock

Number Of Positions Loaded

All

Nominal Gerilim

100V

Total Number Of Contacts

20

RoHS Durumu

RoHS Compliant

Terminal

Solder

Pitch Mating

0.031 0.80mm

Parça Durumu

Active

Contact Type

Non-Gendered

Insulation Color

Black

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Contact Materials

Copper Alloy

Özellikler

Glow Wire Compliant, Solder Retention

Mil Conformance

NO

Current Rating Amps

1.5A

Connector Type

Socket
