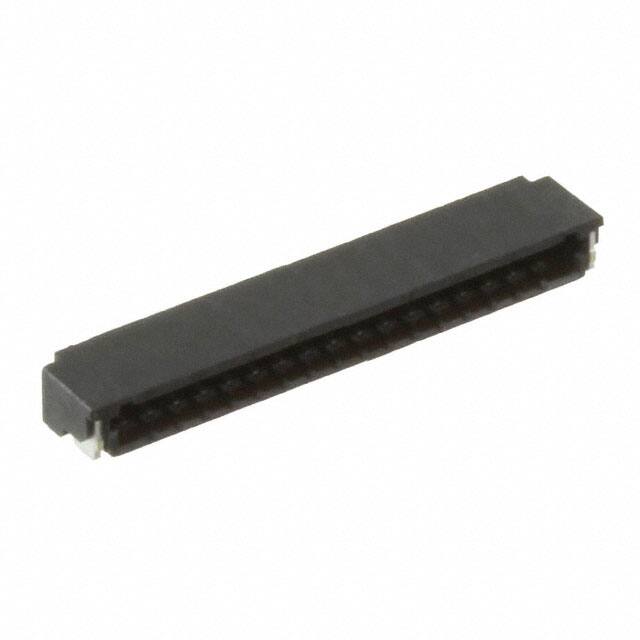

DF52-17S-0.8H(21)

Teknik Özellikler

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Terminal

Solder

Pitch Mating

0.031 0.80mm

Nominal Gerilim

100V

Total Number Of Contacts

17

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Ul Flammability Code

94V-0

Özellikler

Glow Wire Compliant, Solder Retention

Current Rating Amps

1.5A

Connector Type

Socket

Mil Conformance

NO

Iec Conformance

NO

Insulation Color

Black

Contact Type

Non-Gendered

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Filter Feature

NO

Contact Gender

FEMALE

Insulation Height

0.069 1.75mm

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

DF52

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Terminal Adımı

0.8mm

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~85°C

Fastening Type

Detent Lock

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Surface Mount

Pozisyon Sayısı

17

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Sıra Sayısı

1
