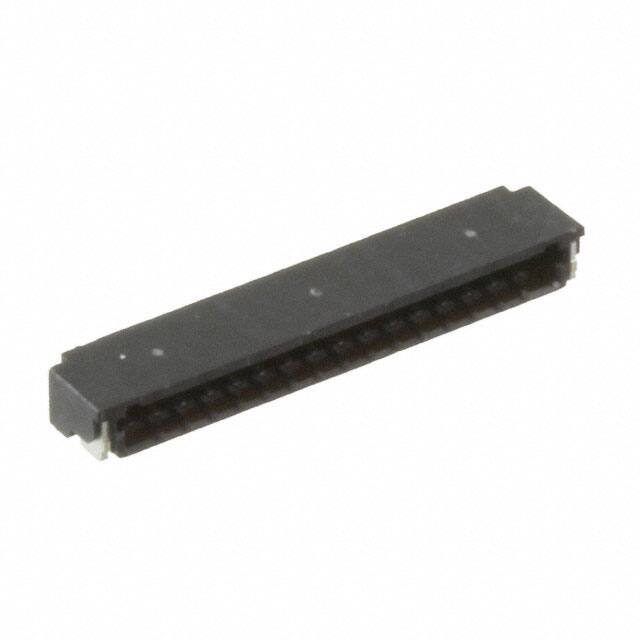

DF52-16S-0.8H(21)

Teknik Özellikler

Fastening Type

Detent Lock

Çalışma Sıcaklığı

-40°C~85°C

Material Flammability Rating

UL94 V-0

Terminal Adımı

0.8mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Pozisyon Sayısı

16

Sıra Sayısı

1

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

ECCN Kodu

EAR99

Contact Gender

FEMALE

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Seri

DF52

Option

GENERAL PURPOSE

Mixed Contacts

NO

Insulation Height

0.069 1.75mm

Mil Conformance

NO

Connector Type

Socket

Current Rating Amps

1.5A

Özellikler

Glow Wire Compliant, Solder Retention

Contact Materials

Copper Alloy

Ul Flammability Code

94V-0

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Insulation Color

Black

Contact Type

Non-Gendered

Parça Durumu

Active

Pitch Mating

0.031 0.80mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

16

Nominal Gerilim

100V

Number Of Positions Loaded

All
