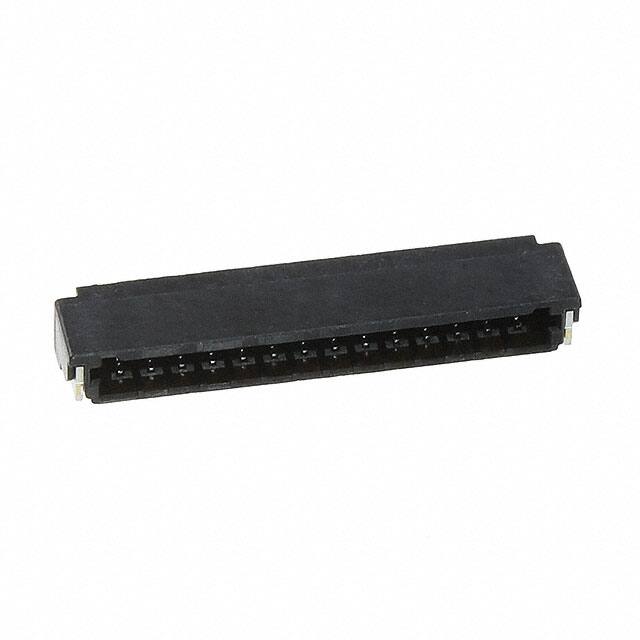

DF52-14S-0.8H(21)

Teknik Özellikler

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Pitch Mating

0.031 0.80mm

Terminal

Solder

Nominal Gerilim

100V

Total Number Of Contacts

14

Number Of Positions Loaded

All

Özellikler

Glow Wire Compliant, Solder Retention

Contact Materials

Copper Alloy

Ul Flammability Code

94V-0

Mil Conformance

NO

Connector Type

Socket

Current Rating Amps

1.5A

HTS Kodu

8536.69.40.40

Insulation Color

Black

Contact Type

Non-Gendered

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Contact Gender

FEMALE

Filter Feature

NO

Insulation Height

0.069 1.75mm

Insulation Materials

Polyamide (PA), Nylon, Halogen Free

Seri

DF52

Option

GENERAL PURPOSE

Mixed Contacts

NO

Terminal Adımı

0.8mm

Fastening Type

Detent Lock

Çalışma Sıcaklığı

-40°C~85°C

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Pozisyon Sayısı

14

Montaj

Surface Mount

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Mating

Tin

Sıra Sayısı

1
