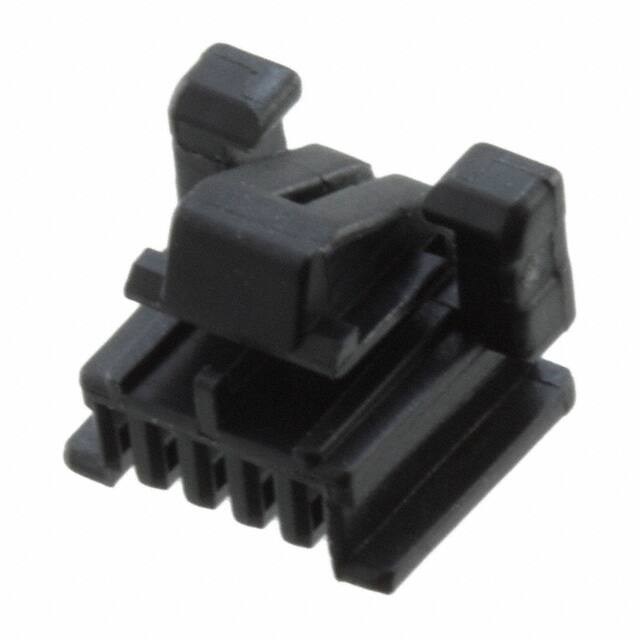

DF50A-5S-1C

Teknik Özellikler

Insulation Resistance

500MOhm

Ul Flammability Code

94V-0

Min. Çalışma Sıcaklığı

-35°C

Akım Değeri

1A

Iec Conformance

NO

Renk

Black

Depth

6mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Pitch

0.039 1.00mm

Wire Size Max

28 AWG

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Genişlik

6.85mm

Contact Termination

Crimp

Montaj Tipi

Free Hanging (In-Line)

Montaj

Cable, Free Hanging

Uzunluk

6.95mm

Contact Gender

Female

ECCN Kodu

EAR99

Housing Material

PBT

Reach Svhc

Unknown

Fabrika Tedarik Süresi

10 Weeks

Wire Size Min

28 AWG

Maks. Çalışma Sıcaklığı

85°C

Mixed Contacts

NO

Option

GENERAL PURPOSE

Mil Conformance

NO

Connector Type

Socket

Reliability

COMMERCIAL

Contact Type

Female Socket

Rated Current Signal

1A

Parça Durumu

Active

Durability

30 Cycles

Total Number Of Contacts

5

Dielectric Withstanding Voltage

300VAC V

Nominal Gerilim

100V

Din Conformance

NO

Gender

Receptacle

Contact Resistance

30mOhm
