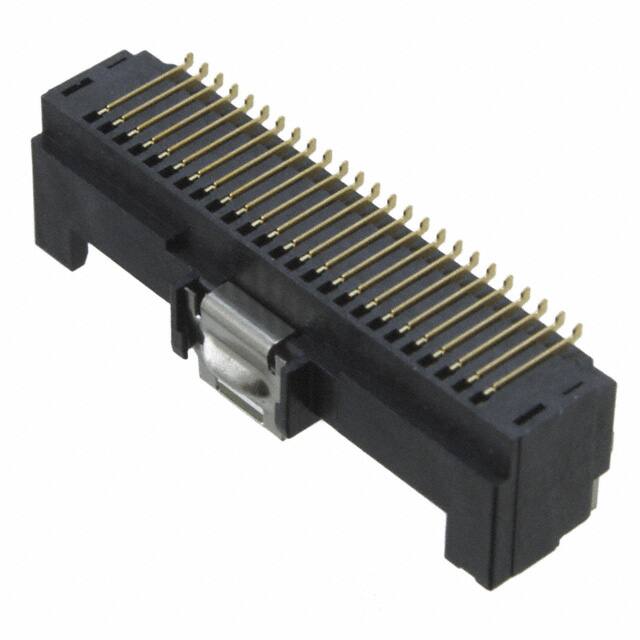

DF50-50DP-1H(51)

Teknik Özellikler

Parça Durumu

Active

Durability

30 Cycles

Number Of Positions Loaded

All

Total Number Of Contacts

50

Dielectric Withstanding Voltage

300VAC V

Nominal Gerilim

100V

Reliability

COMMERCIAL

Connector Type

Header

Contact Finish Thickness Mating

2.00μin 0.051μm

Polarization Key

POLARIZED HOUSING

Contact Type

Male Blade

Rated Current Signal

1A

Reference Standard

UL

Shrouding

Shrouded - 4 Wall

Seri

DF50

Insulation Height

0.354 9.00mm

Contact Resistance

30mOhm

Ambalaj

Tape & Reel (TR)

Fastening Type

Latch Lock

Material Flammability Rating

UL94 V-0

Terminal Adımı

0.9906mm

Yayın Yılı

2013

Sıra Sayısı

2

Contact Finish Mating

Gold

Pozisyon Sayısı

50

Pitch Mating

0.039 1.00mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Row Spacing

4 mm

Number Of Pcb Rows

2

Insulation Resistance

500MOhm

Özellikler

Solder Retention

Contact Materials

Brass

Contact Finish Thickness Post

2.00μin 0.051μm

Insulation

Insulated

Insulation Color

Black

Akım Değeri

1A

Contact Gender

Male

Housing Material

Polymer

Reach Svhc

Unknown
