Adet bazlı fiyat
- 1+ adet$0.50
- 10+ adet$0.48
- 100+ adet$0.45
- 500+ adet$0.42
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

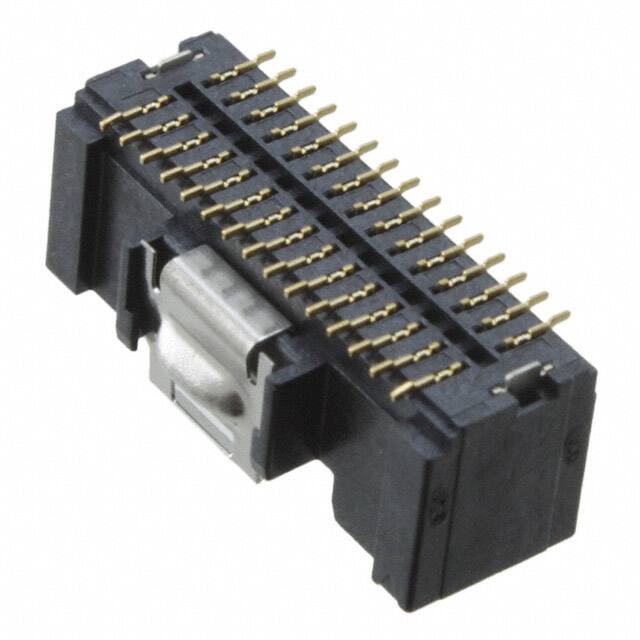

Teknik Özellikler
- Shrouding
- Shrouded - 4 Wall
- Seri
- DF50
- Insulation Height
- 0.278 7.06mm
- Reference Standard
- UL
- Filter Feature
- NO
- Contact Finish Mating
- Gold
- Pozisyon Sayısı
- 30
- Yayın Yılı
- 2013
- Sıra Sayısı
- 2
- Material Flammability Rating
- UL94 V-0
- Fastening Type
- Latch Lock
- Terminal Adımı
- 1mm
- Din Conformance
- NO
- Gender
- Male
- Kurşunsuz
- Lead Free
- Ambalaj
- Cut Tape (CT)
- Total Number Of Contacts
- 30
- Nominal Gerilim
- 100V
- Number Of Positions Loaded
- All
- Parça Durumu
- Active
- Contact Type
- Male Blade
- Rated Current Signal
- 1A
- Polarization Key
- POLARIZED HOUSING
- Reliability
- COMMERCIAL
- Mil Conformance
- NO
- Connector Type
- Header
- Contact Finish Thickness Mating
- 2.00μin 0.051μm
- HTS Kodu
- 8536.69.40.40
- Mixed Contacts
- NO
- Insulation Materials
- Polyester
- Option
- GENERAL PURPOSE
- Pcb Contact Pattern
- RECTANGULAR
- Housing Material
- Polymer
- Reach Svhc
- Unknown
- Fabrika Tedarik Süresi
- 10 Weeks
- ECCN Kodu
- EAR99
- Montaj Tipi
- Surface Mount
- Montaj
- Surface Mount
- Mating Contact Pitch
- 0.039 inch
- Çalışma Sıcaklığı
- -35°C~85°C
