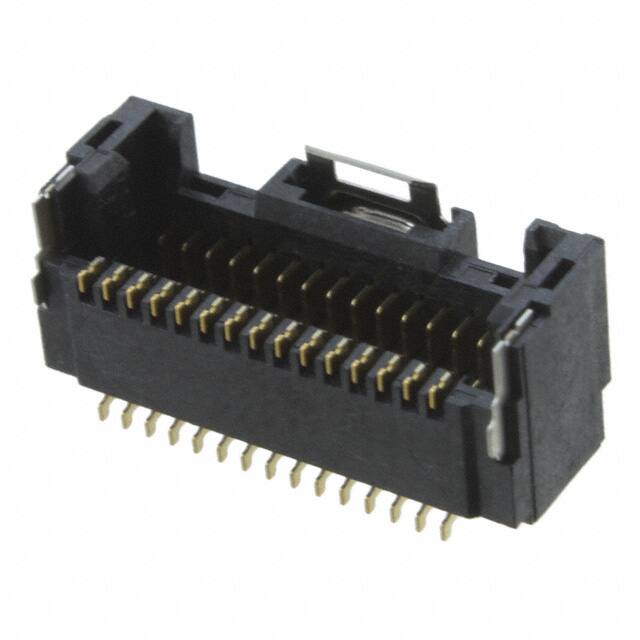

DF50-30DP-1H(51)

Teknik Özellikler

Parça Durumu

Active

Nominal Gerilim

100V

Total Number Of Contacts

30

Number Of Positions Loaded

All

Contact Finish Thickness Mating

2.00μin 0.051μm

Reliability

COMMERCIAL

Connector Type

Header

HTS Kodu

8536.69.40.40

Rated Current Signal

1A

Contact Type

Male Blade

Polarization Key

POLARIZED HOUSING

Insulation Height

0.354 9.00mm

Shrouding

Shrouded - 4 Wall

Seri

DF50

Reference Standard

UL

Terminal Adımı

0.9906mm

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Lock

Kurşunsuz

Lead Free

Ambalaj

Cut Tape (CT)

Pozisyon Sayısı

30

Contact Finish Mating

Gold

Sıra Sayısı

2

Yayın Yılı

2013

RoHS Durumu

RoHS Compliant

Pitch Mating

0.039 1.00mm

Terminal

Solder

Number Of Pcb Rows

2

Contact Materials

Brass

Özellikler

Solder Retention

Insulation Resistance

500MOhm

Insulation Color

Black

Akım Değeri

1A

Contact Finish Thickness Post

2.00μin 0.051μm

Reach Svhc

Unknown

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Polymer

Contact Gender

Male

ECCN Kodu

EAR99

Insulation Materials

Polyester
