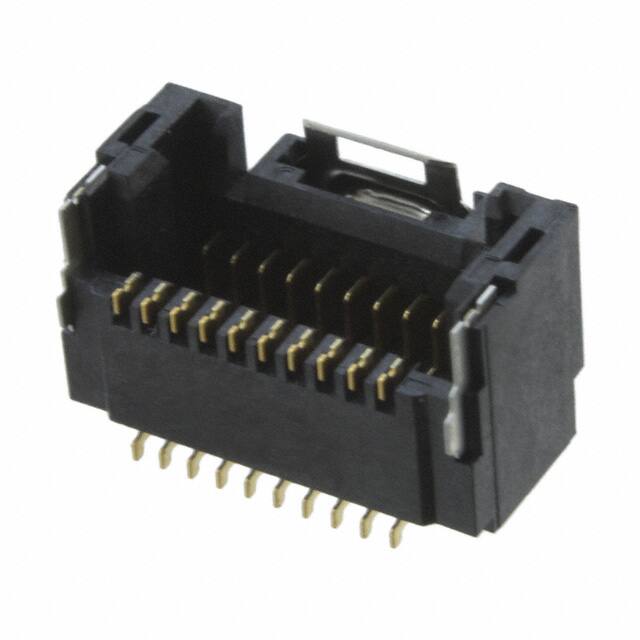

DF50-20DP-1H(51)

Teknik Özellikler

Pitch Mating

0.039 1.00mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Insulation Resistance

500MOhm

Özellikler

Solder Retention

Contact Materials

Brass

Akım Değeri

1A

Insulation Color

Black

Contact Finish Thickness Post

2.00μin 0.051μm

Housing Material

Polymer

Reach Svhc

Unknown

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

ECCN Kodu

EAR99

Insulation Materials

Polyester

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-35°C~85°C

Pcb Contact Row Spacing

5.6896 mm

Number Of Conductors

ONE

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Montaj Tipi

Surface Mount, Right Angle

Montaj

Surface Mount

Mating Contact Pitch

0.039 inch

Parça Durumu

Active

Total Number Of Contacts

20

Dielectric Withstanding Voltage

300VAC V

Nominal Gerilim

100V

Durability

30 Cycles

Number Of Positions Loaded

All

Connector Type

Header

Reliability

COMMERCIAL

Contact Finish Thickness Mating

2.00μin 0.051μm

HTS Kodu

8536.69.40.40

Contact Type

Male Blade

Rated Current Signal

1A

Polarization Key

POLARIZED HOUSING

Shrouding

Shrouded - 4 Wall
