Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

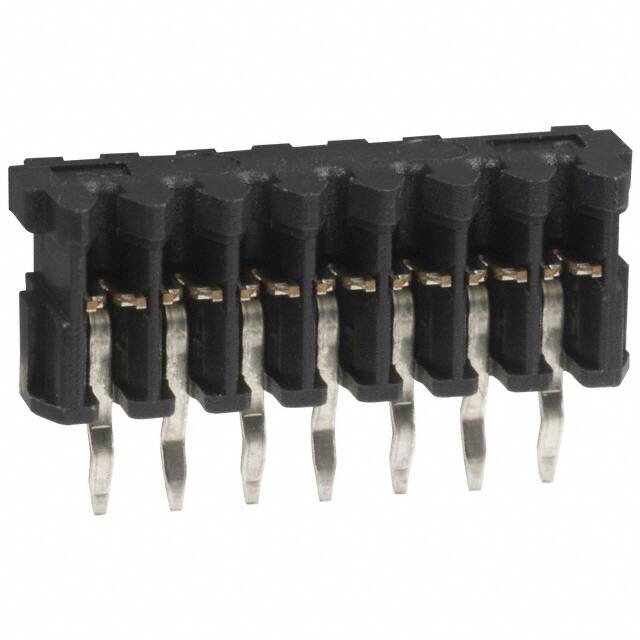

Teknik Özellikler
- Rated Current Signal
- 2A
- Polarization Key
- HOUSING SIDE
- Mil Conformance
- NO
- Connector Type
- Individual Wires
- Reliability
- COMMERCIAL
- Boardside Pitch
- 0.079 2.00mm
- Lead Pitch
- 2mm
- Contact Pattern
- RECTANGULAR
- Dielectric Withstanding Voltage
- 650VAC V
- Total Number Of Contacts
- 7
- Number Of Positions Loaded
- All
- Parça Durumu
- Obsolete
- Contact Finish
- Tin
- Pozisyon Sayısı
- 7
- Yayın Yılı
- 2004
- Sıra Sayısı
- 1
- Bodyshell Style
- PLUG
- Wirecable Gauge
- 26 AWG
- Din Conformance
- NO
- Contact Resistance
- 30mOhm
- Ambalaj
- Bulk
- Kurşunsuz
- Lead Free
- Seri
- DF4
- Reference Standard
- UL
- Additional Feature
- SOLDERED DIRECTLY TO THE BOARD
- REACH Uyumluluk Kodu
- unknown
- Filter Feature
- NO
- Operating Temperature Max
- 85°C
- Iec Conformance
- NO
- Renk
- Black
- Akım Değeri
- 2A
- JESD-609 Kodu
- e3
- Özellikler
- Closed End
- Contact Materials
- Copper
- Ul Flammability Code
- 94V-0
- Cable Pitch
- 0.079 2.00mm
- Pitch
- 2.0066mm
- Body Depth
- 0.232 inch
- RoHS Durumu
- RoHS Compliant
- Montaj Tipi
- Through Hole
