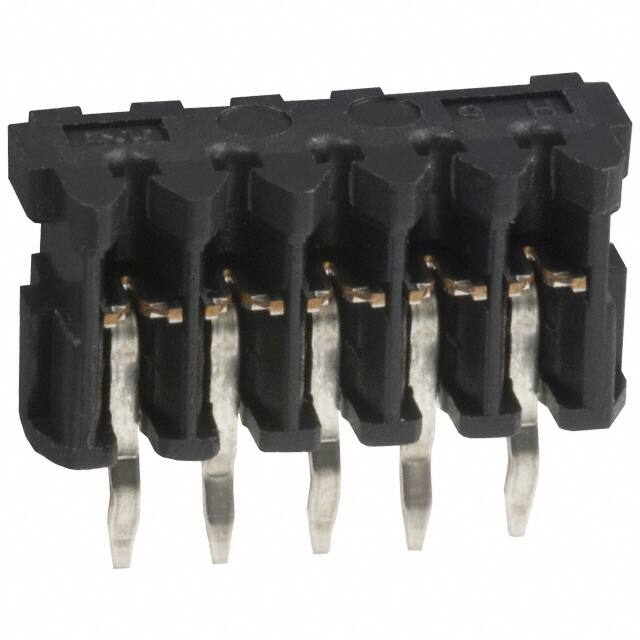

DF4-5P-2R28

Teknik Özellikler

Seri

DF4

Contact Gender

MALE

Wire Gauge

28 AWG, Stranded

JESD-609 Kodu

e3

Body Depth

0.232 inch

Montaj Tipi

Through Hole

Contact Finish

Tin

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Operating Temperature Min

-30°C

Contact Resistance

30mOhm

Wirecable Gauge

28 AWG

Cable Pitch

0.079 2.00mm

Sıra Sayısı

1

Option

GENERAL PURPOSE

Contact Pattern

RECTANGULAR

Mil Conformance

NO

Bodyshell Style

PLUG

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

PHOSPHOR COPPER

Reliability

COMMERCIAL

Filter Feature

NO

Body Length Or Diameter

0.472 inch

Cable Termination

IDC

Termination Type

IDC

Connector Type

Individual Wires

Rated Current Signal

1A

Lead Pitch

2mm

Boardside Pitch

0.079 2.00mm

Total Number Of Contacts

5

Pozisyon Sayısı

5

Additional Feature

SOLDERED DIRECTLY TO THE BOARD

Contact Design

PREASSEM CONN

RoHS Durumu

RoHS Compliant

Özellikler

Closed End

Parça Durumu

Obsolete

Number Of Positions Loaded

All

Contact Style

SQ PIN-SKT
