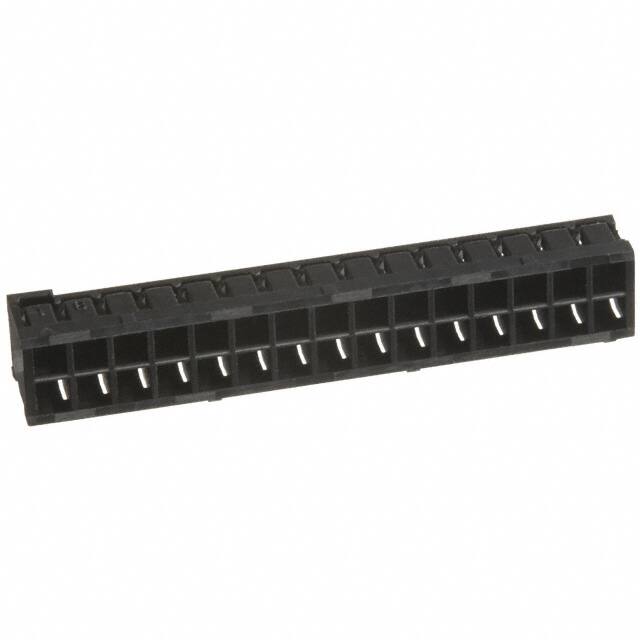

DF4-30DP-2C

Teknik Özellikler

Ul Flammability Code

94V-0

Pitch

2.0066mm

Housing Material

Plastic

Yayın Yılı

2004

Mixed Contacts

NO

Dielectric Withstanding Voltage

650VAC V

Renk

Black

Contact Plating

Brass

Din Conformance

NO

Contact Style

SQ PIN-SKT

Kurşunsuz

Lead Free

Body Breadth

0.197 inch

Ambalaj

Bulk

Contact Design

PREASSEM CONN

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Özellikler

Contacts Not Included

Row Spacing

0.079 (2.00mm)

Length Termination

0.106 inch

Filter Feature

NO

Reliability

COMMERCIAL

Operating Temperature Max

85°C

Rated Current Signal

3A

Lead Pitch

2mm

Connector Type

Housing

Cable Termination

Crimp

Total Number Of Contacts

30

Boardside Pitch

0.079 2.00mm

Pozisyon Sayısı

30

Mil Conformance

NO

Bodyshell Style

PLUG

Insulation Resistance

1000000000Ohm

Reference Standard

UL

Contact Materials

COPPER ALLOY

REACH Uyumluluk Kodu

unknown

Kurşunsuz Kodu

yes

Contact Finish Mating

TIN

Cable Pitch

0.079 2.00mm

Option

GENERAL PURPOSE

Sıra Sayısı

2
