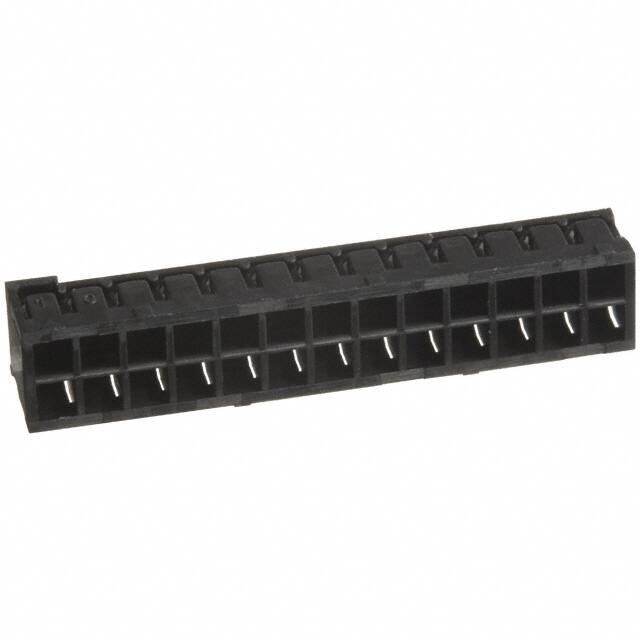

DF4-26DP-2C

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Montaj Tipi

CABLE

Contact Finish Termination

TIN

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Seri

DF4

Body Depth

0.165 inch

JESD-609 Kodu

e3

Bodyshell Style

PLUG

Voltage Rated Ac

250V

Mil Conformance

NO

Contact Materials

Brass

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Contact Finish Mating

TIN

Cable Pitch

0.079 2.00mm

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Operating Temperature Min

-30°C

Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

RoHS Durumu

RoHS Compliant

Yükseklik

5mm

Parça Durumu

Active

Özellikler

Contacts Not Included

Row Spacing

0.079 (2.00mm)

Lead Pitch

2mm

Rated Current Signal

3A

Connector Type

Housing

Cable Termination

Crimp

Filter Feature

NO

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Pozisyon Sayısı

26

Akım Değeri

3A

Total Number Of Contacts

26

Boardside Pitch

0.079 2.00mm
