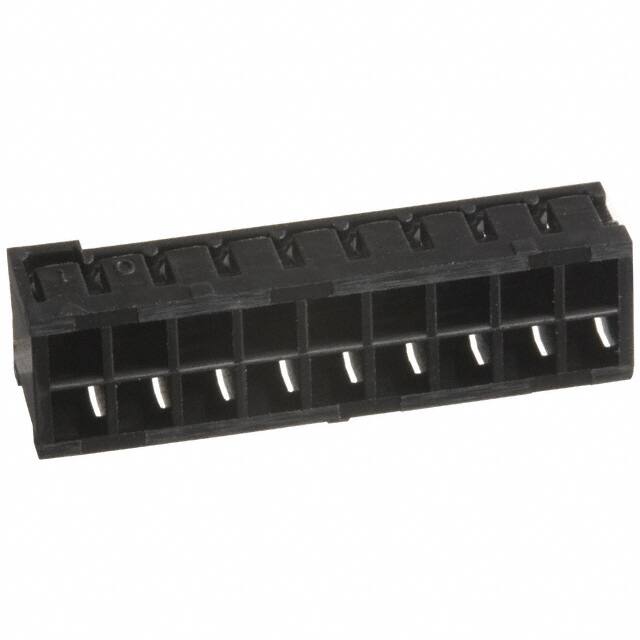

DF4-18DP-2C

Teknik Özellikler

Kurşunsuz

Lead Free

Body Breadth

0.197 inch

Ambalaj

Bulk

Din Conformance

NO

Contact Style

SQ PIN-SKT

Contact Plating

Tin

ECCN Kodu

EAR99

Renk

Black

Mixed Contacts

NO

Yayın Yılı

2004

Uzunluk

18.8mm

Dielectric Withstanding Voltage

650VAC V

Ul Flammability Code

94V-0

Pitch

2.0066mm

Housing Material

Polyamide

Pozisyon Sayısı

18

Akım Değeri

3A

Total Number Of Contacts

18

Boardside Pitch

0.079 2.00mm

Lead Pitch

2mm

Rated Current Signal

3A

Connector Type

Housing

Cable Termination

Crimp

Filter Feature

NO

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Parça Durumu

Active

Özellikler

Contacts Not Included

Row Spacing

0.079 (2.00mm)

RoHS Durumu

RoHS Compliant

Yükseklik

5mm

Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

Contact Finish Mating

TIN

Cable Pitch

0.079 2.00mm

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Operating Temperature Min

-30°C

Contact Materials

Brass
