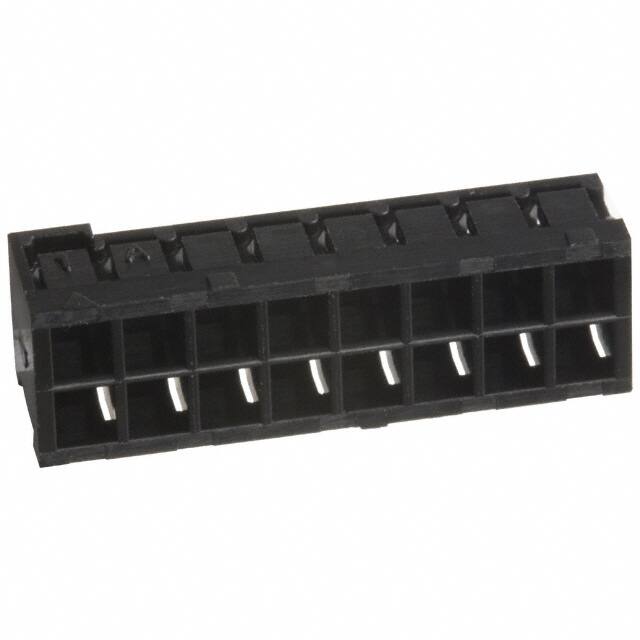

DF4-16DP-2C

Teknik Özellikler

Montaj Tipi

CABLE

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

DF4

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Contact Finish Termination

TIN

JESD-609 Kodu

e3

Bodyshell Style

PLUG

Voltage Rated Ac

250V

Mil Conformance

NO

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL

Operating Temperature Min

-30°C

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

TIN

Cable Pitch

0.079 2.00mm

Sıra Sayısı

2

Option

GENERAL PURPOSE

Contact Pattern

RECTANGULAR

RoHS Durumu

RoHS Compliant

Yükseklik

5mm

Row Spacing

0.079 (2.00mm)

Parça Durumu

Active

Özellikler

Contacts Not Included

Reliability

COMMERCIAL

Operating Temperature Max

85°C

Filter Feature

NO

Cable Termination

Crimp

Lead Pitch

2mm

Rated Current Signal

3A

Connector Type

Housing

Total Number Of Contacts

16

Boardside Pitch

0.079 2.00mm

Akım Değeri

3A

Pozisyon Sayısı

16
