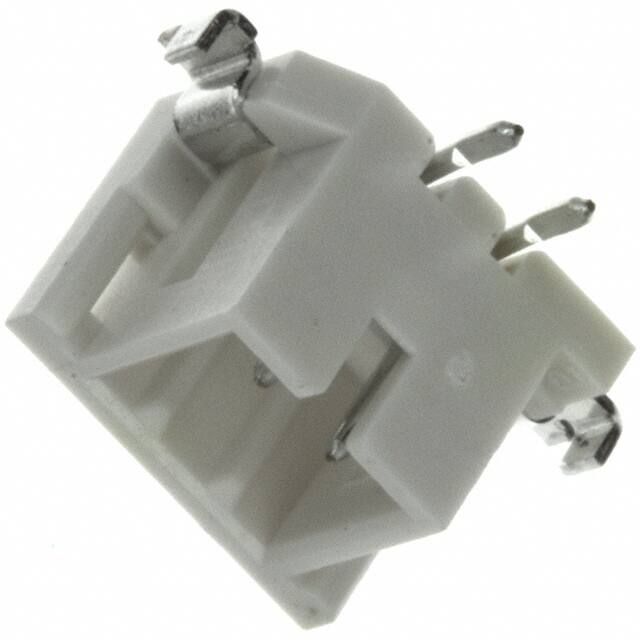

DF3Z-2P-2V(20)

Teknik Özellikler

Radyasyon Dayanımı

No

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Rated Current Signal

3A

Lead Pitch

2mm

Body Length Or Diameter

0.335 inch

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Total Number Of Contacts

2

Pozisyon Sayısı

2

Style

Board to Board or Cable

Akım Değeri

3A

Contact Finish Thickness Mating

39.4μin 1.00μm

RoHS Durumu

RoHS Compliant

Özellikler

Board Guide, Solder Retention

Parça Durumu

Discontinued

Terminal

Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

Fastening Type

Push-Pull

Stack Height Mating

7.7mm 8.4mm

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Ambalaj

Tube

Durability

30 Cycles

Ul Flammability Code

94V-0

Housing Material

Plastic

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Yayın Yılı

2008

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Seri

DF3

Contact Gender

Male

Shrouding

Shrouded - 4 Wall
