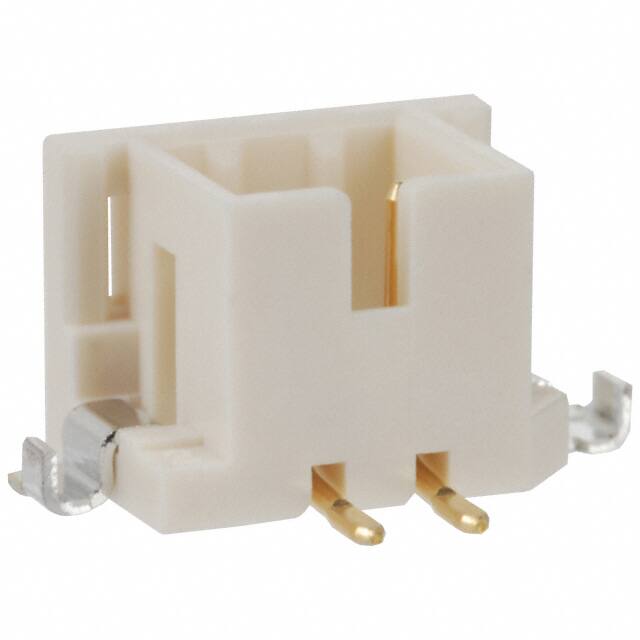

DF3EA-2P-2V(51)

Teknik Özellikler

Parça Durumu

Active

Özellikler

Solder Retention

Insulation Height

0.232 5.90mm

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Circular

HTS Kodu

8536.69.40.40

Current Rating Amps

Varies by WireGAuge

Contact Finish Thickness Mating

8.00μin 0.203μm

Montaj Tipi

Surface Mount

Pitch Mating

0.079 2.00mm

Pozisyon Sayısı

2

Insulation Color

Beige

Style

Board to Board or Cable

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Fabrika Tedarik Süresi

12 Weeks

Çalışma Sıcaklığı

-55°C~105°C

Seri

DF3

Material Flammability Rating

UL94 V-0

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Contact Type

Male Pin

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

250VAC

Ambalaj

Tape & Reel (TR)

Fastening Type

Push-Pull

Sıra Sayısı

1

Stack Height Mating

7.5mm 7.7mm 8.4mm

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Terminal

Solder
