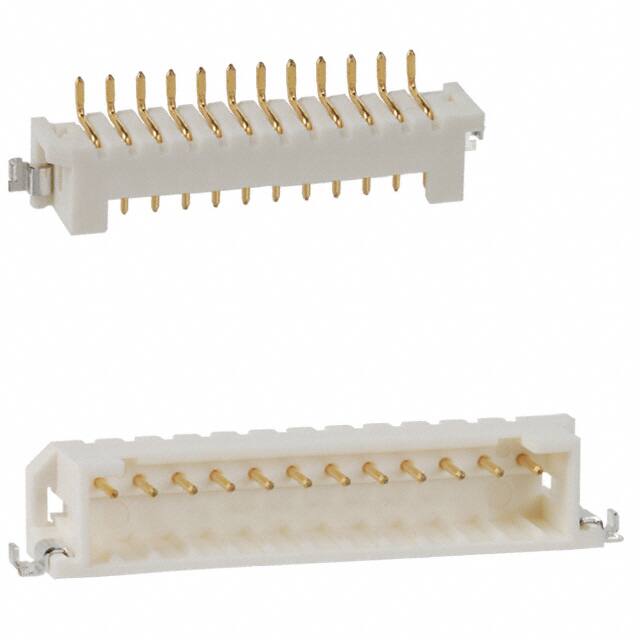

DF3EA-12P-2H(51)

Teknik Özellikler

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Male Pin

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Contact Materials

Brass

Terminal

Solder

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Sıra Sayısı

1

Fastening Type

Push-Pull

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

250VAC

Pitch Mating

0.079 2.00mm

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Current Rating Amps

Varies by WireGAuge

Contact Shape

Circular

RoHS Durumu

RoHS Compliant

Insulation Height

0.220 5.60mm

Özellikler

Solder Retention

Parça Durumu

Active

Seri

DF3

Çalışma Sıcaklığı

-55°C~105°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Style

Board to Board or Cable

Pozisyon Sayısı

12

Insulation Color

Beige
