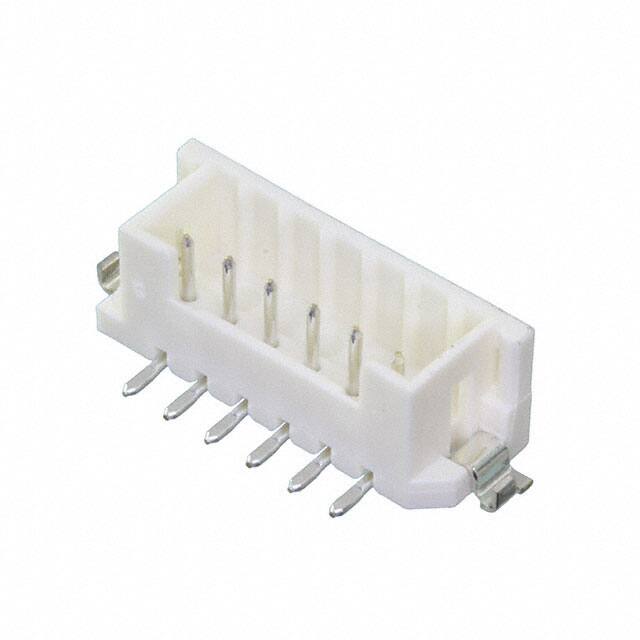

DF3DZ-6P-2V(21)

Teknik Özellikler

Nominal Gerilim

250V

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Mating

Tin

Contact Resistance

30mOhm

Contact Materials

Brass

Reference Standard

UL, CSA

Number Of Pcb Rows

1

Mil Conformance

NO

Orientation

Straight

Insulation Color

Beige

JESD-609 Kodu

e3

Housing Color

Black

Shrouding

Shrouded - 4 Wall

Contact Gender

Male

Seri

DF3

Number Of Conductors

ONE

Depth

5.6mm

Insulation Height

0.232 5.90mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Montaj Tipi

Surface Mount

Contact Shape

Circular

Body Breadth

0.22 inch

Ambalaj

Tape & Reel (TR)

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Din Conformance

NO

Max Current Rating

3A

Fastening Type

Push-Pull

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All

Terminal

Solder

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Yayın Yılı

2008

Mixed Contacts

NO

Uzunluk

19.5mm
