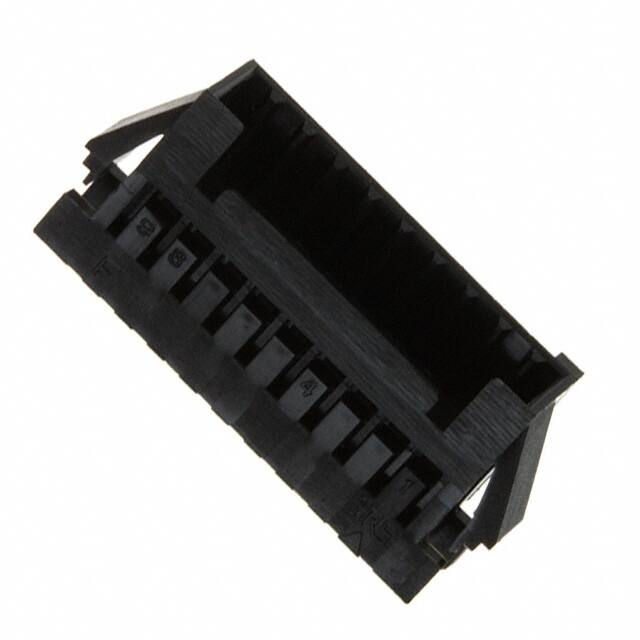

DF3AA-9EP-2C

Teknik Özellikler

Uzunluk

25mm

Wire Size Max

22 AWG

Yayın Yılı

2004

Mixed Contacts

NO

Contact Type

Male Pin

Withdrawl Forcemin

.3058 N

Housing Material

Polyamide

Pitch

0.079 2.00mm

Mil Conformance

NO

Contact Materials

BRASS

Reference Standard

UL, CSA

REACH Uyumluluk Kodu

unknown

Renk

Black

Note

Contacts Not Included

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-30°C

Kurşunsuz

Lead Free

Ambalaj

Bulk

Nominal Gerilim

250V

Option

WITH CABLE ASSEMBLY

Din Conformance

NO

Polarization Key

HOUSING SIDE

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

5.9mm

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Additional Feature

PANEL MOUNTABLE

Montaj Tipi

Panel Mount, Snap-In

Montaj

Panel, Snap in

Parça Durumu

Active

Connector Type

Plug

Lead Pitch

2mm

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Contact Termination

Crimp
