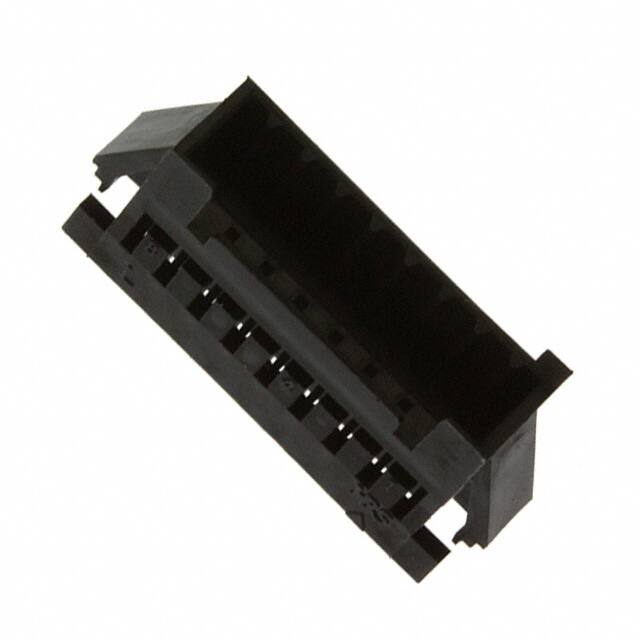

DF3AA-8EP-2C

Teknik Özellikler

Ul Flammability Code

94V-0

Housing Material

Polyamide

Pitch

0.079 2.00mm

Mil Conformance

NO

Uzunluk

23mm

Wire Size Max

22 AWG

Yayın Yılı

2004

Mixed Contacts

NO

Contact Type

Male Pin

Renk

Black

ECCN Kodu

EAR99

Reference Standard

UL, CSA

Contact Materials

BRASS

REACH Uyumluluk Kodu

unknown

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-30°C

Note

Contacts Not Included

Contact Finish Mating

TIN

Option

WITH CABLE ASSEMBLY

Din Conformance

NO

Polarization Key

HOUSING SIDE

Sıra Sayısı

1

Kurşunsuz

Lead Free

Ambalaj

Bulk

Nominal Gerilim

250V

Additional Feature

PANEL MOUNTABLE

Montaj Tipi

Panel Mount, Snap-In

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

5.9mm

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Parça Durumu

Active

Montaj

Panel, Snap in

Filter Feature

NO

Contact Termination

Crimp

Reliability

COMMERCIAL

Seri

DF3

Connector Type

Plug

Contact Gender

Male
