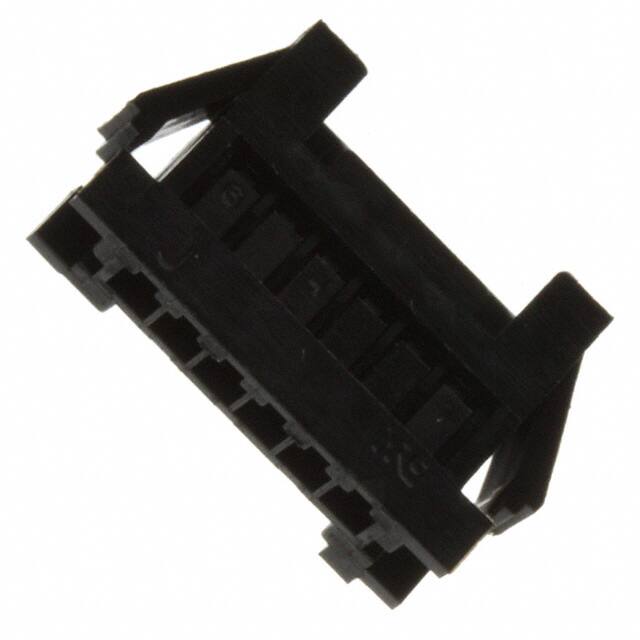

DF3AA-6EP-2C

Teknik Özellikler

Nominal Gerilim

250V

Sıra Sayısı

1

Option

WITH CABLE ASSEMBLY

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Note

Contacts Not Included

Operating Temperature Min

-30°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes

Contact Materials

BRASS

Reference Standard

UL, CSA

Mil Conformance

NO

Orientation

Straight

Body Depth

0.437 inch

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Seri

DF3

Contact Termination

Crimp

Montaj

Panel, Snap in

Iec Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Montaj Tipi

Panel Mount, Snap-In

Ambalaj

Bulk

Kurşunsuz

Lead Free

Polarization Key

HOUSING SIDE

Din Conformance

NO

ECCN Kodu

EAR99

Renk

Black

Contact Type

Male Pin

Mixed Contacts

NO

Yayın Yılı

2004

Uzunluk

19mm

Wire Size Max

22 AWG

Pitch

0.079 2.00mm

Housing Material

Polyamide

Ul Flammability Code

94V-0

Withdrawl Forcemin

.3058 N

Akım Değeri

3A

Insertion Forcemax

4.3924 N
