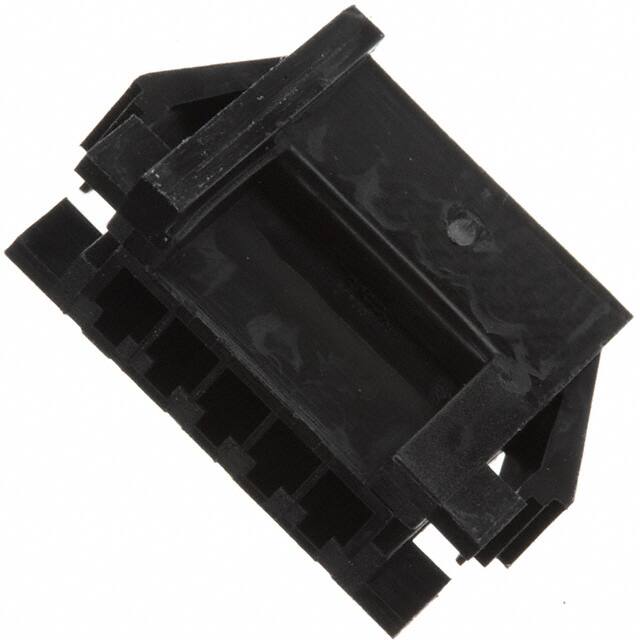

DF3AA-5EP-2C

Teknik Özellikler

Renk

Black

Reference Standard

UL, CSA

Contact Materials

BRASS

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Housing Material

Polyamide

Pitch

0.079 2.00mm

Mil Conformance

NO

Wire Size Max

22 AWG

Mixed Contacts

NO

Yayın Yılı

2004

Contact Type

Male Pin

Option

WITH CABLE ASSEMBLY

Sıra Sayısı

1

Polarization Key

HOUSING SIDE

Din Conformance

NO

Kurşunsuz

Lead Free

Ambalaj

Bulk

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-30°C

Note

Contacts Not Included

Wire Size Min

28 AWG

Contact Finish Mating

TIN

Parça Durumu

Active

Montaj

Panel, Snap in

Additional Feature

PANEL MOUNTABLE

Montaj Tipi

Panel Mount, Snap-In

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Total Number Of Contacts

5

JESD-609 Kodu

e3

Pozisyon Sayısı

5

Body Depth

0.437 inch

Insertion Forcemax

4.3924 N

Akım Değeri

3A

Contact Termination

Crimp

Filter Feature

NO
