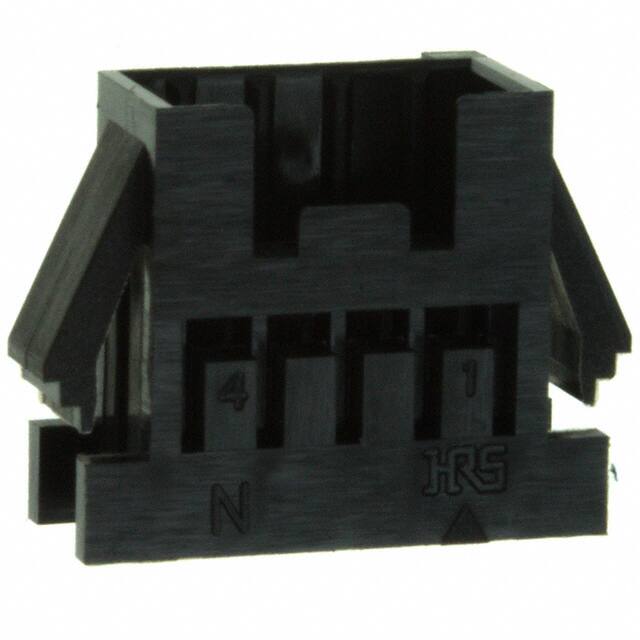

DF3AA-4EP-2C

Teknik Özellikler

Note

Contacts Not Included

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Kurşunsuz Kodu

yes

Operating Temperature Min

-30°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz

Lead Free

Nominal Gerilim

250V

Ambalaj

Bulk

Option

WITH CABLE ASSEMBLY

Din Conformance

NO

Polarization Key

HOUSING SIDE

Sıra Sayısı

1

Yayın Yılı

2008

Mixed Contacts

NO

Uzunluk

15mm

Wire Size Max

22 AWG

Contact Type

Male Pin

Withdrawl Forcemin

.3058 N

Pitch

0.079 2.00mm

Mil Conformance

NO

Housing Material

Polyamide

Contact Materials

BRASS

Reference Standard

UL, CSA

REACH Uyumluluk Kodu

unknown

Renk

Black

Lead Pitch

2mm

Contact Gender

Male

Connector Type

Plug

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Contact Termination

Crimp

Seri

DF3

Reliability

COMMERCIAL

Operating Temperature Max

85°C

JESD-609 Kodu

e3

Pozisyon Sayısı

4

Akım Değeri

3A

Total Number Of Contacts

4
