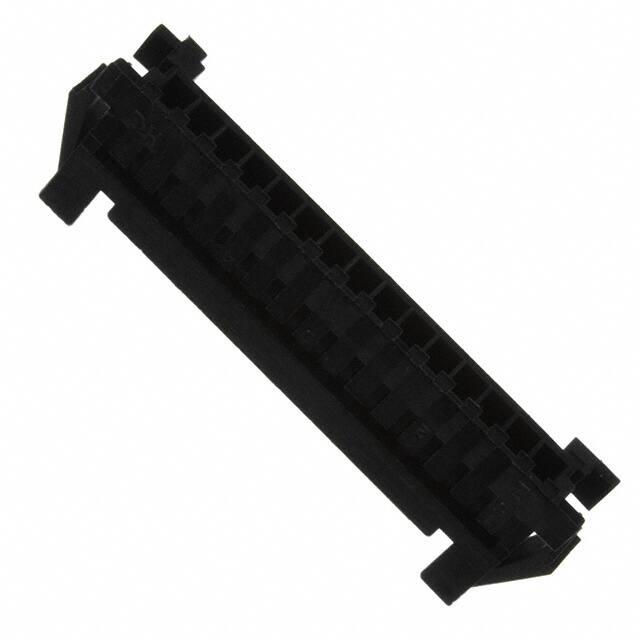

DF3AA-15EP-2C

Teknik Özellikler

Withdrawl Forcemin

.3058 N

Ul Flammability Code

94V-0

Insulation Materials

POLYAMIDE

Mil Conformance

NO

Pitch

0.079 2.00mm

Wire Size Max

22 AWG

Mixed Contacts

NO

Yayın Yılı

2004

Contact Type

Male Pin

ECCN Kodu

EAR99

Renk

Black

Reference Standard

UL, CSA

Contact Materials

BRASS

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-30°C

Note

Contacts Not Included

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Option

WITH CABLE ASSEMBLY

Sıra Sayısı

1

Polarization Key

HOUSING SIDE

Din Conformance

NO

Mounting Option1

LOCKING MECH

Ambalaj

Bulk

Additional Feature

PANEL MOUNTABLE

HTS Kodu

8536.69.40.40

Montaj Tipi

Panel Mount, Snap-In

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Parça Durumu

Active

Contact Termination

Crimp

Filter Feature

NO

Reliability

COMMERCIAL

Operating Temperature Max

85°C

Seri

DF3

Connector Type

Plug

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

15
