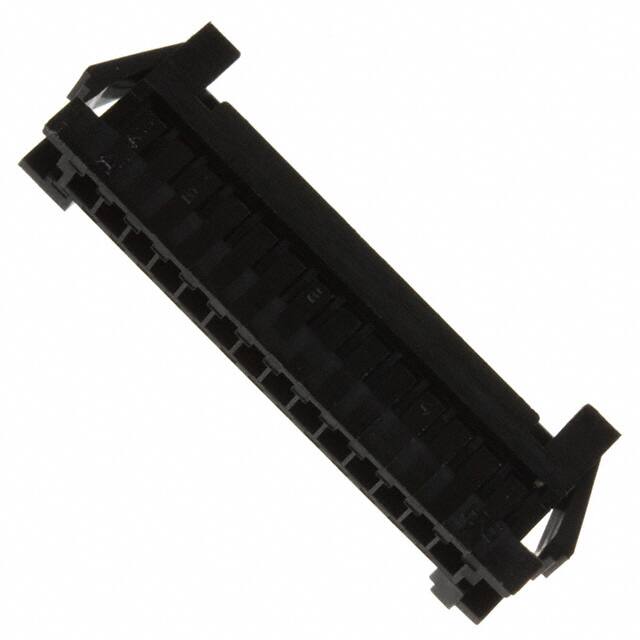

DF3AA-14EP-2C

Teknik Özellikler

Montaj

Panel, Snap in

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Panel Mount, Snap-In

JESD-609 Kodu

e3

Body Depth

0.437 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Seri

DF3

Contact Termination

Crimp

REACH Uyumluluk Kodu

unknown

Contact Materials

BRASS

Reference Standard

UL, CSA

Mil Conformance

NO

Nominal Gerilim

250V

Sıra Sayısı

1

Option

WITH CABLE ASSEMBLY

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Note

Contacts Not Included

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-30°C

Kurşunsuz Kodu

yes

Parça Durumu

Active

Yükseklik

5.9mm

RoHS Durumu

RoHS Compliant

Additional Feature

PANEL MOUNTABLE

Insertion Forcemax

4.3924 N

Akım Değeri

3A

Pozisyon Sayısı

14

Total Number Of Contacts

14

Connector Type

Plug

Lead Pitch

2mm

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Filter Feature

NO

Renk

Black

Contact Type

Male Pin

Uzunluk

35mm

Wire Size Max

22 AWG
