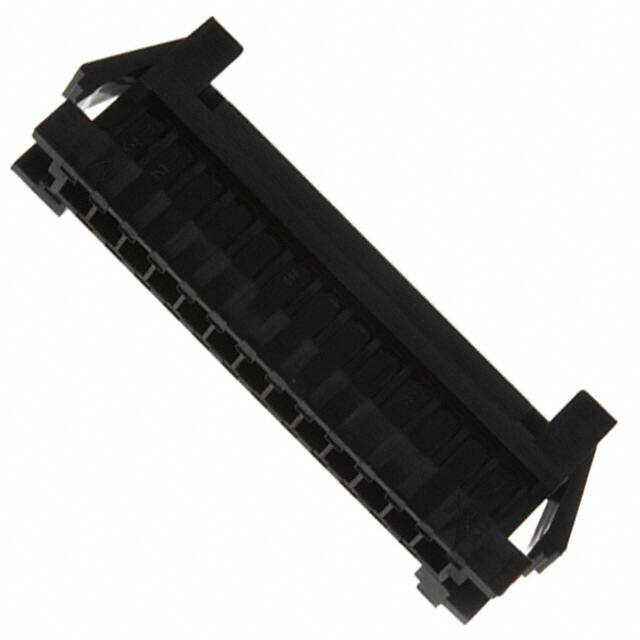

DF3AA-13EP-2C

Teknik Özellikler

Renk

Black

ECCN Kodu

EAR99

Ul Flammability Code

94V-0

Withdrawl Forcemin

.3058 N

Pitch

0.079 2.00mm

Housing Material

Polyamide

Yayın Yılı

2004

Mixed Contacts

NO

Wire Size Max

22 AWG

Contact Type

Male Pin

Din Conformance

NO

Polarization Key

HOUSING SIDE

Kurşunsuz

Lead Free

Ambalaj

Bulk

Parça Durumu

Active

Additional Feature

PANEL MOUNTABLE

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

13

Pozisyon Sayısı

13

Akım Değeri

3A

Insertion Forcemax

4.3924 N

Filter Feature

NO

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Lead Pitch

2mm

Connector Type

Plug

Reference Standard

UL, CSA

Contact Materials

BRASS

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Option

WITH CABLE ASSEMBLY

Sıra Sayısı

1

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Operating Temperature Min

-30°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Note

Contacts Not Included

Contact Finish Mating

TIN

Wire Size Min

28 AWG

Montaj

Panel, Snap in
