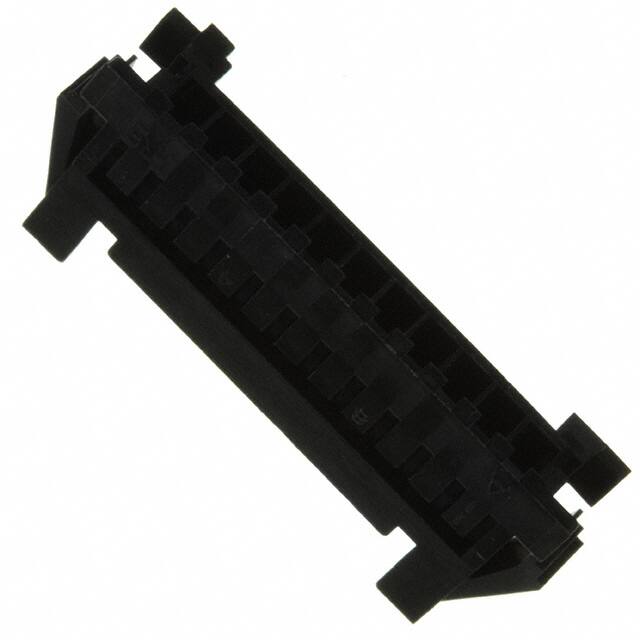

DF3AA-11EP-2C

Teknik Özellikler

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Contact Materials

BRASS

Reference Standard

UL, CSA

Wire Size Min

28 AWG

Contact Finish Mating

TIN

Note

Contacts Not Included

Operating Temperature Min

-30°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

Sıra Sayısı

1

Option

WITH CABLE ASSEMBLY

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Panel Mount, Snap-In

HTS Kodu

8536.69.40.40

Montaj

Panel, Snap in

Fabrika Tedarik Süresi

10 Weeks

Seri

DF3

Contact Termination

Crimp

Body Depth

0.437 inch

JESD-609 Kodu

e3

Contact Type

Male Pin

Yayın Yılı

2004

Mixed Contacts

NO

Wire Size Max

22 AWG

Pitch

0.079 2.00mm

Housing Material

Polyamide

Ul Flammability Code

94V-0

Withdrawl Forcemin

.3058 N

ECCN Kodu

EAR99

Renk

Black

Ambalaj

Bulk

Kurşunsuz

Lead Free

Din Conformance

NO

Polarization Key

HOUSING SIDE

RoHS Durumu

RoHS Compliant

Additional Feature

PANEL MOUNTABLE

Parça Durumu

Active
