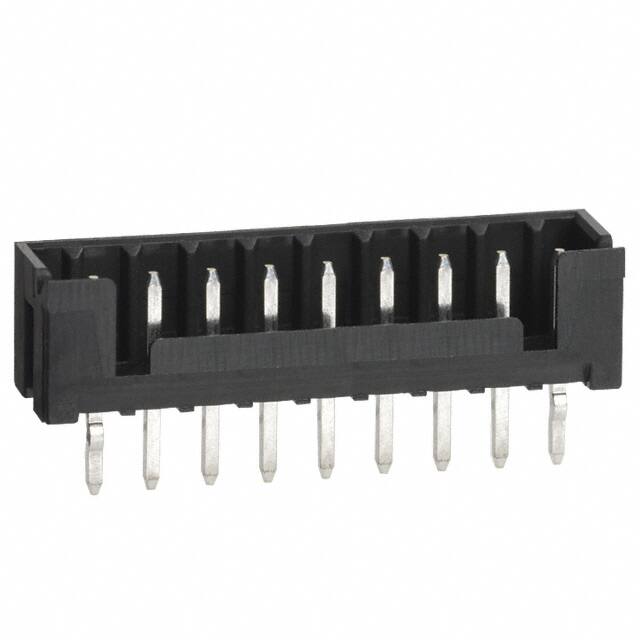

DF3A-9P-2DSA

Teknik Özellikler

Seri

DF3

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.122 3.10mm

Orientation

Straight

JESD-609 Kodu

e3

Housing Color

Black

Contact Length Post

0.114 2.90mm

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.197 5.00mm

Overall Contact Length

0.299 7.60mm

Montaj

Through Hole

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

Tin

Sıra Sayısı

1

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

250V

Mil Conformance

NO

Number Of Pcb Rows

1

Reference Standard

UL

Contact Materials

Brass

Reliability

COMMERCIAL

Filter Feature

NO

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~105°C

Lead Pitch

2mm

Connector Type

Header

Akım Değeri

3A

Style

Board to Board or Cable

Pozisyon Sayısı

9

Contact Finish Thickness Mating

39.4μin 1.00μm

RoHS Durumu

RoHS Compliant
