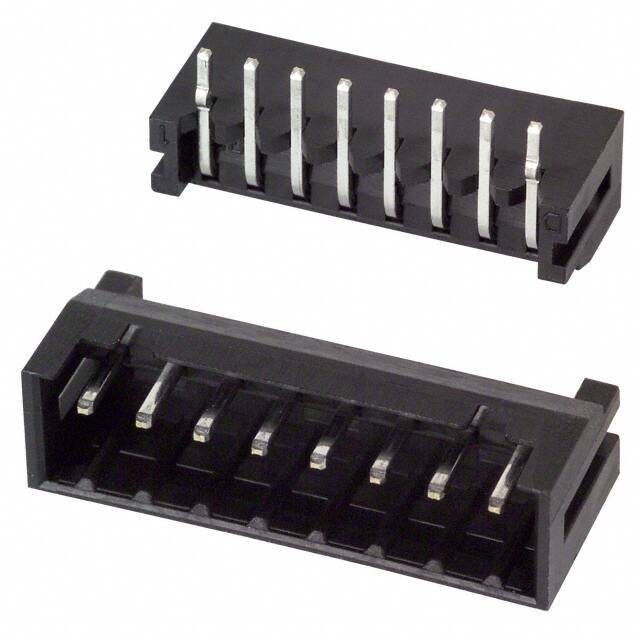

DF3A-8P-2DS

Teknik Özellikler

Pozisyon Sayısı

8

Style

Board to Board or Cable

Insertion Forcemax

4.3924 N

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Fastening Type

Push-Pull

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Ambalaj

Bulk

Terminal

Press-Fit, Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Housing Material

Plastic

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Yayın Yılı

2008

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Contact Lengthmating

0.122 3.10mm

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3

Insulation Color

Black

Number Of Conductors

ONE

Seri

DF3

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.197 5.00mm

Current Rating Amps

3A

Contact Shape

Square

Pitch Mating

0.079 2.00mm
