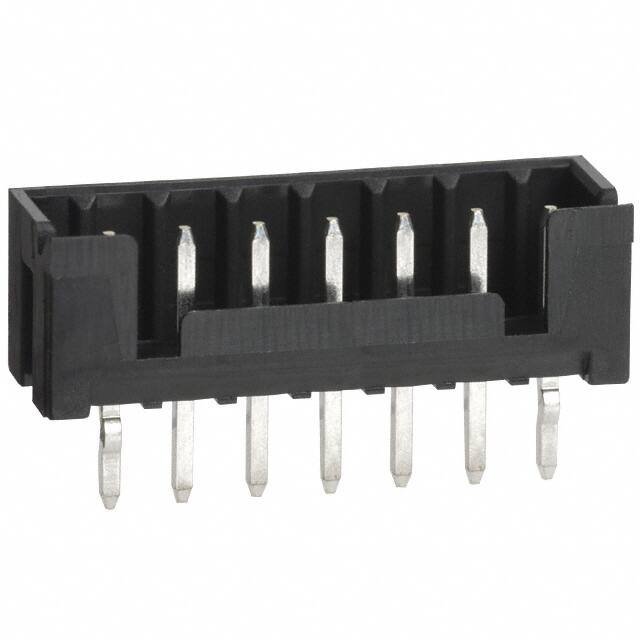

DF3A-7P-2DSA

Teknik Özellikler

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Mixed Contacts

NO

Yayın Yılı

2008

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Ul Flammability Code

94V-0

Insulation Materials

Polyamide (PA), Nylon

Housing Material

Plastic

Kurşunsuz

Lead Free

Ambalaj

Bulk

Fastening Type

Push-Pull

Stack Height Mating

5mm

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Number Of Positions Loaded

All

Terminal

Press-Fit, Solder

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

39.4μin 1.00μm

Pozisyon Sayısı

7

Insertion Forcemax

4.3924 N

Style

Board to Board or Cable

Akım Değeri

3A

Connector Type

Header

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Filter Feature

NO

Reliability

COMMERCIAL

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Number Of Pcb Rows

1

Mil Conformance

NO

Nominal Gerilim

250V

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

1

Contact Finish Mating

Tin

Contact Resistance

30mOhm
