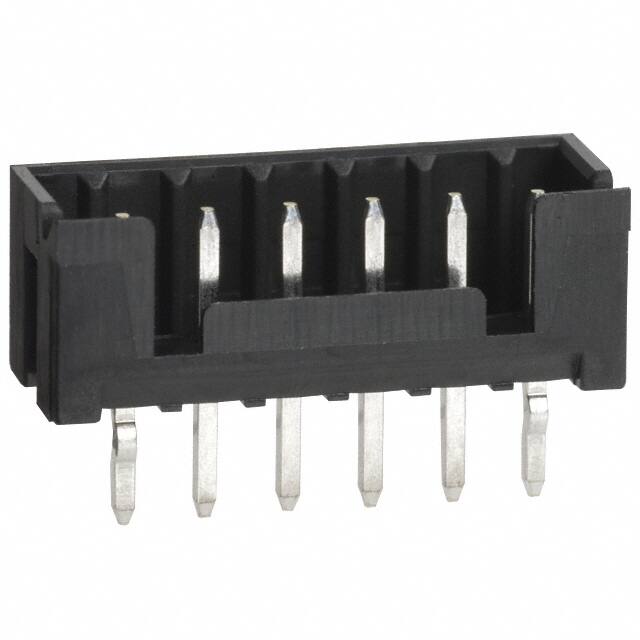

DF3A-6P-2DSA

Teknik Özellikler

Terminal

Press-Fit, Solder

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Stack Height Mating

5mm

Fastening Type

Push-Pull

Ambalaj

Bulk

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Housing Material

Plastic

Insulation Materials

Polyamide (PA), Nylon

Ul Flammability Code

94V-0

Contact Type

Male Pin

Mixed Contacts

NO

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~105°C

Lead Pitch

2mm

Connector Type

Header

Insertion Forcemax

4.3924 N

Style

Board to Board or Cable

Pozisyon Sayısı

6

Contact Finish Thickness Mating

39.4μin 1.00μm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

Tin

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Mil Conformance

NO

Insulation Resistance

1GOhm

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL
