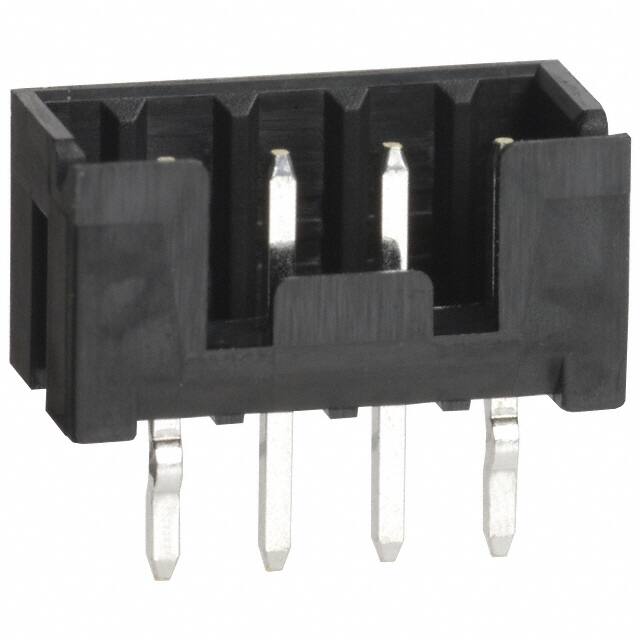

DF3A-4P-2DSA

Teknik Özellikler

Terminal

Press-Fit, Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

Fastening Type

Push-Pull

Stack Height Mating

5mm

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Ambalaj

Bulk

Housing Material

Plastic

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2005

Mixed Contacts

NO

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Pozisyon Sayısı

4

Style

Board to Board or Cable

Contact Finish Thickness Mating

39.4μin 1.00μm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

Tin

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Mil Conformance

NO

Voltage Rated Ac

30V

Number Of Pcb Rows

1

Insulation Resistance

1GOhm

Reference Standard

UL

Contact Materials

Brass
