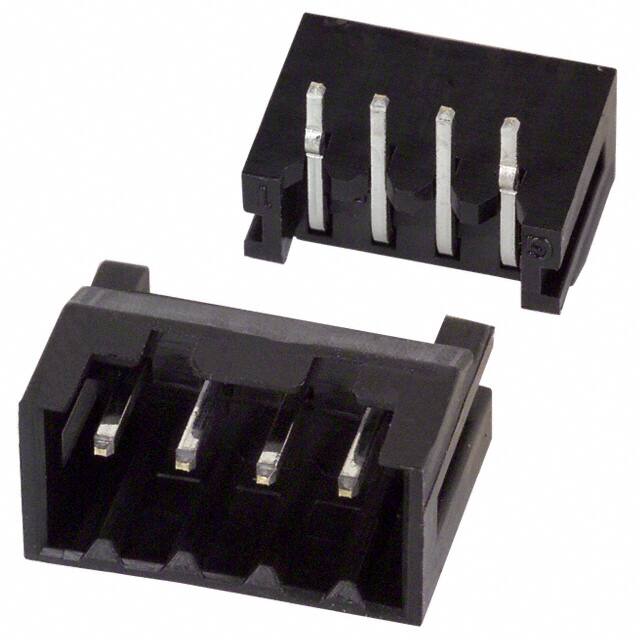

DF3A-4P-2DS

Teknik Özellikler

Fastening Type

Push-Pull

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Ambalaj

Bulk

Terminal

Press-Fit, Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2008

Mixed Contacts

NO

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Pozisyon Sayısı

4

Style

Board to Board or Cable

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

1

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Number Of Pcb Rows

1

Insulation Resistance

1GOhm

Reference Standard

UL

Contact Materials

Brass

Mil Conformance

NO

Voltage Rated Ac

30V

Contact Lengthmating

0.122 3.10mm

Shrouding

Shrouded - 4 Wall
