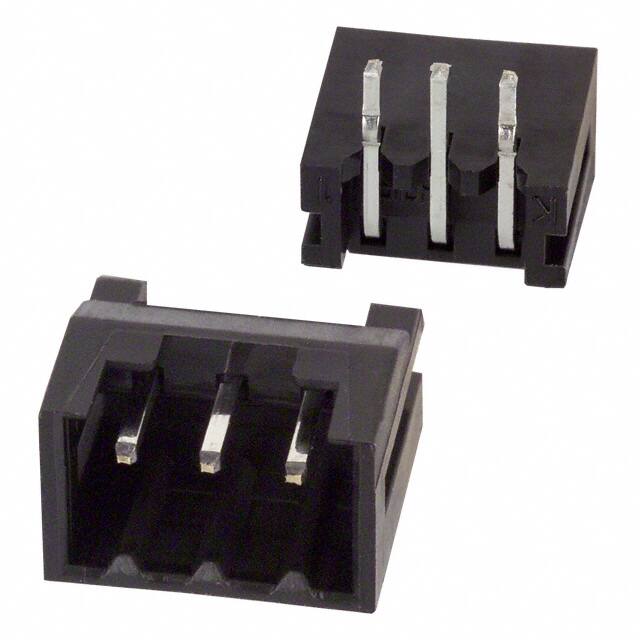

DF3A-3P-2DS

Teknik Özellikler

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

Tin

Sıra Sayısı

1

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Voltage Rated Ac

30V

Mil Conformance

NO

Insulation Resistance

1GOhm

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL

Seri

DF3

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.122 3.10mm

Insulation Color

Black

JESD-609 Kodu

e3

Contact Length Post

0.114 2.90mm

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Current Rating Amps

3A

Iec Conformance

NO

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.197 5.00mm

Terminal

Press-Fit, Solder

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Fastening Type

Push-Pull

Ambalaj

Bulk

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Housing Material

Plastic
