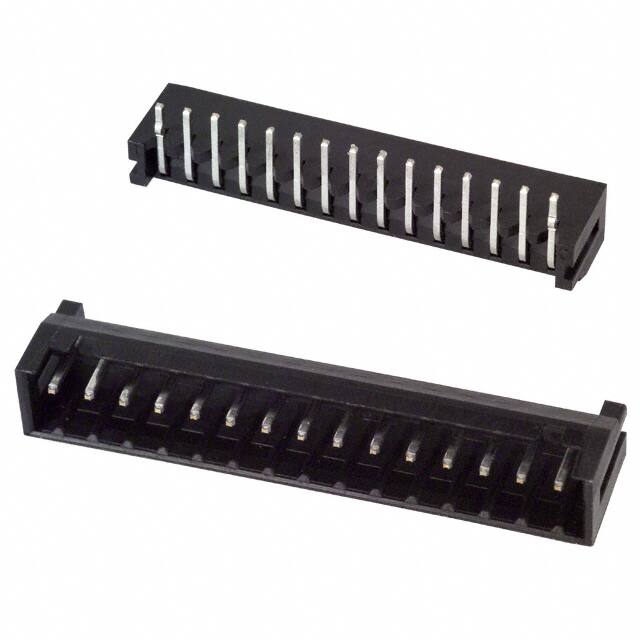

DF3A-15P-2DS

Teknik Özellikler

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.114 2.90mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Number Of Conductors

ONE

Seri

DF3

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.122 3.10mm

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3

Housing Color

Black

Body Depth

0.283 inch

Orientation

Right Angle

Mil Conformance

NO

Number Of Pcb Rows

1

Contact Materials

Brass

Reference Standard

UL

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

1

Nominal Gerilim

250V

Yükseklik

5mm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Radyasyon Dayanımı

No

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

15

Style

Board to Board or Cable
