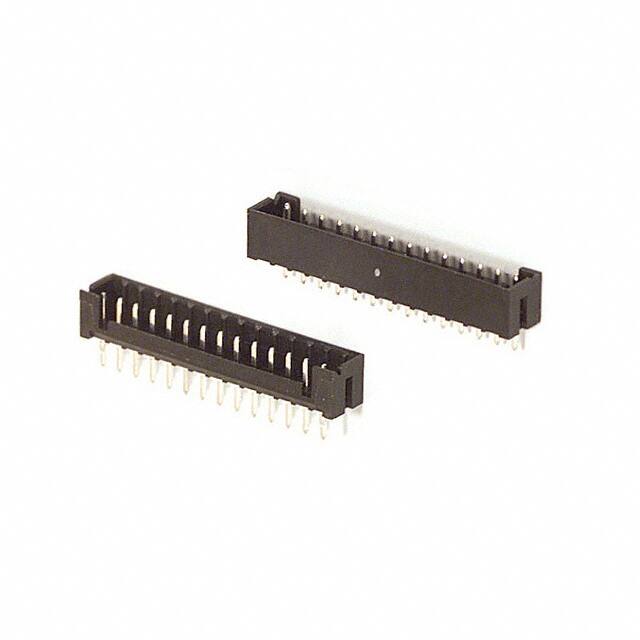

DF3A-14P-2DSA

Teknik Özellikler

Nominal Gerilim

250V

Sıra Sayısı

1

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Number Of Pcb Rows

1

Mil Conformance

NO

Orientation

Straight

Housing Color

Black

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.122 3.10mm

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Seri

DF3

Number Of Conductors

ONE

Depth

5mm

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Overall Contact Length

0.299 7.60mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole

Contact Shape

Square

Ambalaj

Tube

Kurşunsuz

Lead Free

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Max Current Rating

3A

Fastening Type

Push-Pull

Max Voltage Rating Ac

100V

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All
