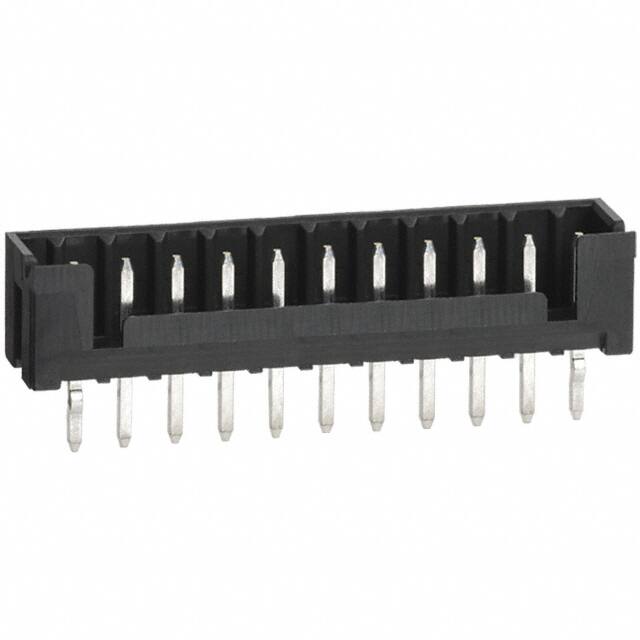

DF3A-11P-2DSA

Teknik Özellikler

Contact Lengthmating

0.122 3.10mm

Shrouding

Shrouded - 4 Wall

Housing Color

Black

JESD-609 Kodu

e3

Orientation

Straight

Seri

DF3

Number Of Conductors

ONE

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Overall Contact Length

0.299 7.60mm

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Contact Shape

Square

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Nominal Gerilim

100V

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Finish Mating

Tin

Number Of Pcb Rows

1

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Pozisyon Sayısı

11

Akım Değeri

3A

Style

Board to Board or Cable

Insertion Forcemax

4.3924 N

Filter Feature

NO

Reliability

COMMERCIAL

Lead Pitch

2mm

Connector Type

Header

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active
