Adet bazlı fiyat
- 1+ adet$0.16
- 10+ adet$0.15
- 100+ adet$0.14
- 500+ adet$0.13
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

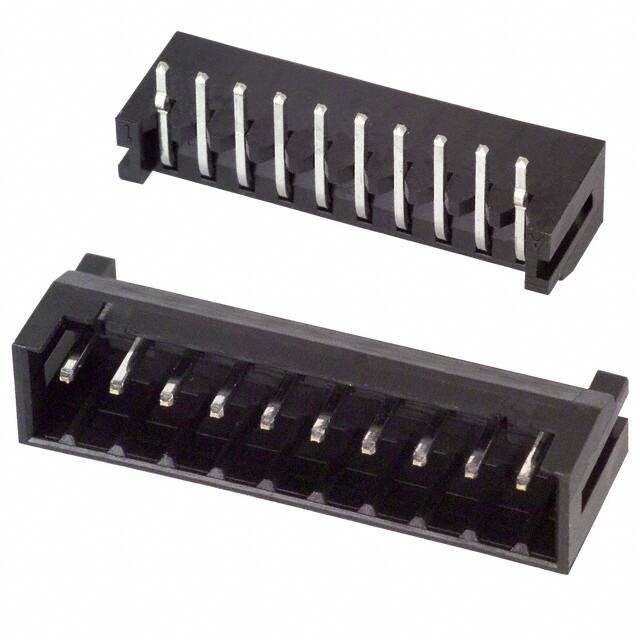

Teknik Özellikler
- Fabrika Tedarik Süresi
- 10 Weeks
- Seri
- DF3
- Number Of Conductors
- ONE
- Body Depth
- 0.283 inch
- Insulation Color
- Black
- JESD-609 Kodu
- e3
- Shrouding
- Shrouded - 4 Wall
- Contact Lengthmating
- 0.122 3.10mm
- Iec Conformance
- NO
- Gender
- Male
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Length Post
- 0.114 2.90mm
- Montaj Tipi
- Through Hole, Right Angle
- Pitch Mating
- 0.079 2.00mm
- Contact Shape
- Square
- HTS Kodu
- 8536.69.40.40
- Current Rating Amps
- 3A
- Insulation Height
- 0.197 5.00mm
- Contact Finish Mating
- Tin
- Kurşunsuz Kodu
- yes
- Contact Resistance
- 30mOhm
- Sıra Sayısı
- 1
- Option
- GENERAL PURPOSE
- Pcb Contact Pattern
- RECTANGULAR
- Mil Conformance
- NO
- REACH Uyumluluk Kodu
- unknown
- Reference Standard
- UL
- Contact Materials
- Brass
- Number Of Pcb Rows
- 1
- Çalışma Sıcaklığı
- -55°C~105°C
- Lead Pitch
- 2mm
- Connector Type
- Header
- Reliability
- COMMERCIAL
- Filter Feature
- NO
- Style
- Board to Board or Cable
- Insertion Forcemax
- 4.3924 N
- Pozisyon Sayısı
- 10
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Mating Contact Pitch
- 0.079 inch
