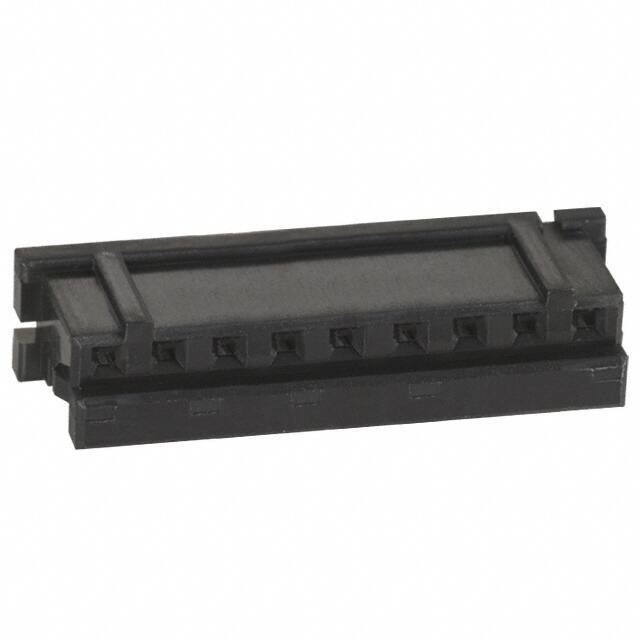

DF3-9S-2C

Teknik Özellikler

Rated Current Signal

3A

Contact Materials

PHOSPHOR BRONZE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

6.8mm

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Renk

Black

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Mil Conformance

NO

Contact Termination

Crimp

Lead Pitch

2mm

Withdrawl Forcemin

.30024 N

Wire Size Max

22 AWG

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Sıra Sayısı

1

Yükseklik

4.6mm

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

RoHS Durumu

RoHS Compliant

Uzunluk

20mm

Contact Resistance

30mOhm

Polarization Key

POLARIZED HOUSING

Contact Type

Female Socket

Montaj

Cable, Free Hanging

Contact Gender

Female

Option

WITH CABLE ASSEMBLY

Total Number Of Contacts

9

Additional Feature

LOW PROFILE

Orientation

Straight

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle
