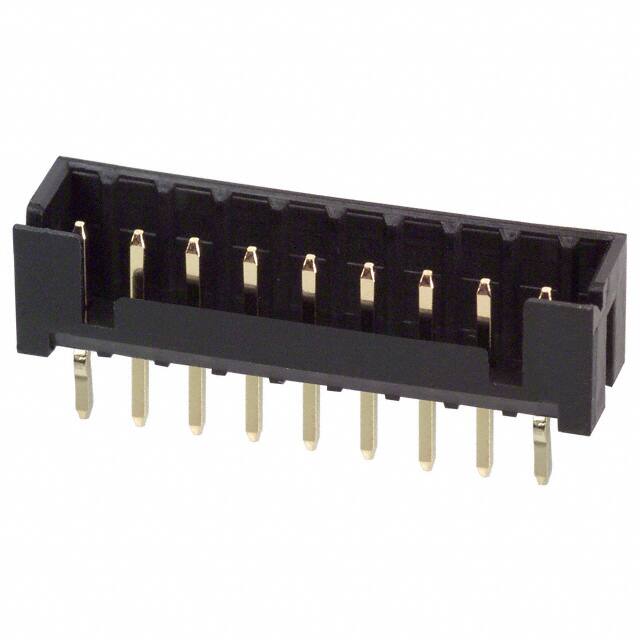

DF3-9P-2DSA(01)

Teknik Özellikler

Shrouding

Shrouded - 4 Wall

Rated Current Signal

3A

Contact Materials

Brass

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reference Standard

UL, CSA

Filter Feature

NO

Reliability

COMMERCIAL

Mil Conformance

NO

Lead Pitch

2mm

Withdrawl Forcemin

.3058 N

Çalışma Sıcaklığı

-55°C~105°C

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Contact Lengthmating

0.122 3.10mm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Contact Finish Mating

Gold

Body Length Or Diameter

0.787 inch

Contact Shape

Square

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Sıra Sayısı

1

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

Style

Board to Board or Cable

Contact Type

Male Pin

Overall Contact Length

0.299 7.60mm

Durability

50 Cycles

Kurşunsuz Kodu

yes

Housing Color

Black

Nominal Gerilim

100V
