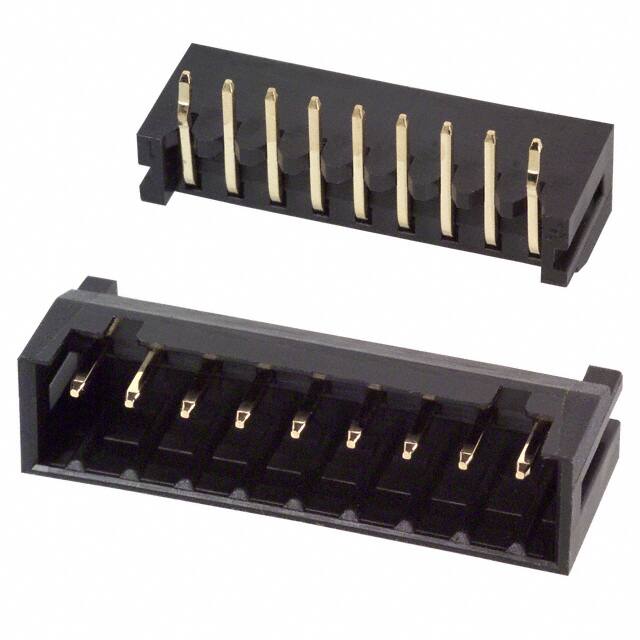

DF3-9P-2DS(01)

Teknik Özellikler

Yükseklik

5mm

Kurşunsuz Kodu

yes

Durability

50 Cycles

Nominal Gerilim

100V

Housing Color

Black

RoHS Durumu

RoHS Compliant

Uzunluk

20mm

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

Style

Board to Board or Cable

Contact Type

Male Pin

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Contact Gender

Male

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Number Of Pcb Rows

1

Contact Finish Thickness Mating

8.00μin 0.203μm

Terminal

Press-Fit, Solder

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

3A

JESD-609 Kodu

e4

Din Conformance

NO

Body Depth

0.283 inch

Pozisyon Sayısı

9

Mixed Contacts

NO

Seri

DF3

Yayın Yılı

2008

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

Shrouding

Shrouded - 4 Wall

Rated Current Signal

3A

Contact Materials

Brass

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR
