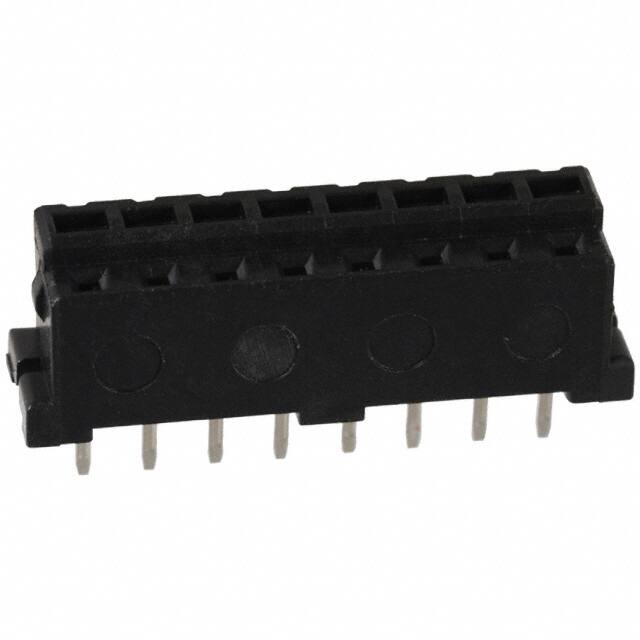

DF3-8S-2DSA(25)

Teknik Özellikler

Çalışma Sıcaklığı

-30°C~85°C

Pozisyon Sayısı

8

Lead Pitch

2mm

Din Conformance

NO

Mil Conformance

NO

Parça Durumu

Active

Akım Değeri

3A

JESD-609 Kodu

e3/e4

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Terminal

Solder

Stack Height Mating

6.6mm 7.5mm

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Sıra Sayısı

1

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Tin

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Yayın Yılı

2008

Kurşunsuz

Lead Free

Seri

DF3

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Female Socket

Style

Board to Board or Cable

RoHS Durumu

RoHS Compliant

Nominal Gerilim

30VAC

Housing Color

Black

Contact Materials

Phosphor Bronze

Orientation

Straight

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Finish Thickness Post

78.7μin 2.00μm

REACH Uyumluluk Kodu

unknown
