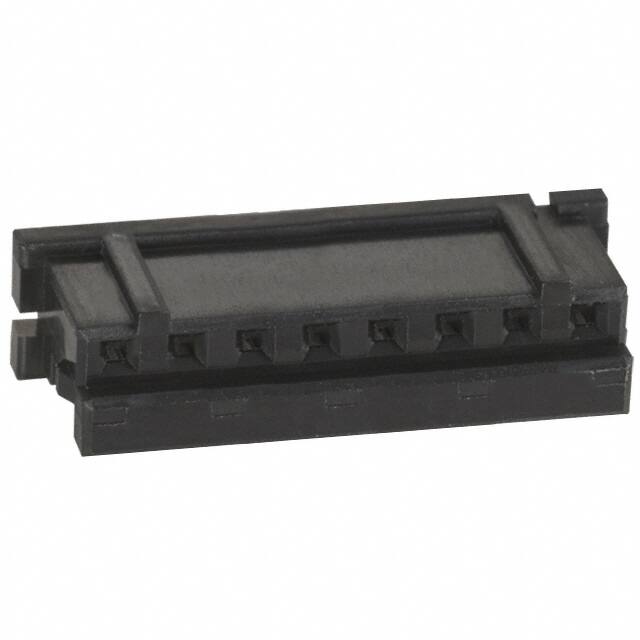

DF3-8S-2C

Teknik Özellikler

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Voltage Rated Ac

30V

Insertion Forcemax

4.3924 N

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING MECH

Contact Materials

NOT SPECIFIED

Contact Type

Female Socket

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

RoHS Durumu

RoHS Compliant

Reach Svhc

No SVHC

Reliability

COMMERCIAL

Renk

Black

Additional Feature

LOW PROFILE

Filter Feature

NO

Orientation

Straight

Total Number Of Contacts

8

Ul Flammability Code

94V-0

Option

WITH CABLE ASSEMBLY

Reference Standard

UL, CSA

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1GOhm

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

ECCN Kodu

EAR99

Mixed Contacts

NO

Wire Size Max

22 AWG

Pozisyon Sayısı

8

Lead Pitch

2mm

Note

Contacts Not Included

Din Conformance

NO

Mil Conformance

NO

Contact Termination

Crimp

Yayın Yılı

2008

Kurşunsuz

Lead Free

Seri

DF3

Montaj Tipi

Free Hanging (In-Line)

Pitch

0.079 2.00mm

Ambalaj

Bulk
