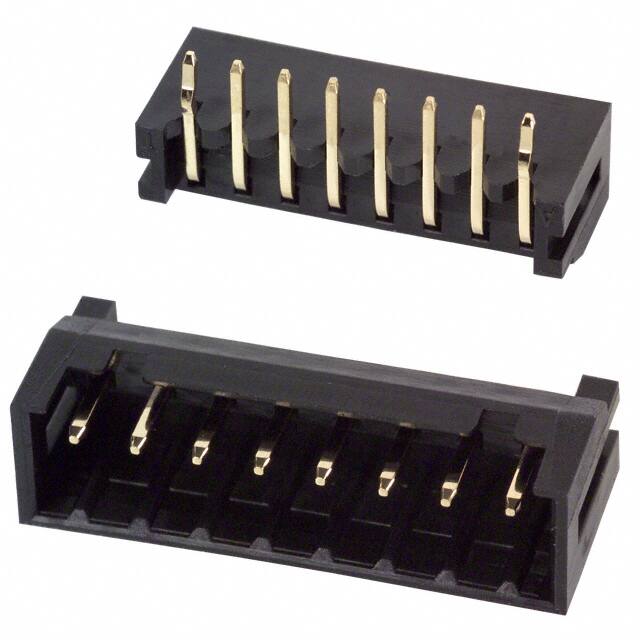

DF3-8P-2DS(01)

Teknik Özellikler

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Right Angle

REACH Uyumluluk Kodu

unknown

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

Contact Gender

Male

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Style

Board to Board or Cable

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Polarization Key

HOUSING SIDE

Contact Resistance

30mOhm

Nominal Gerilim

100V

Housing Color

Black

Durability

50 Cycles

Kurşunsuz Kodu

yes

Pitch Mating

0.079 2.00mm

Contact Length Post

0.114 2.90mm

Yayın Yılı

2008

Seri

DF3

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

8

Akım Değeri

3A

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Terminal

Press-Fit, Solder

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Number Of Conductors

ONE

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass
