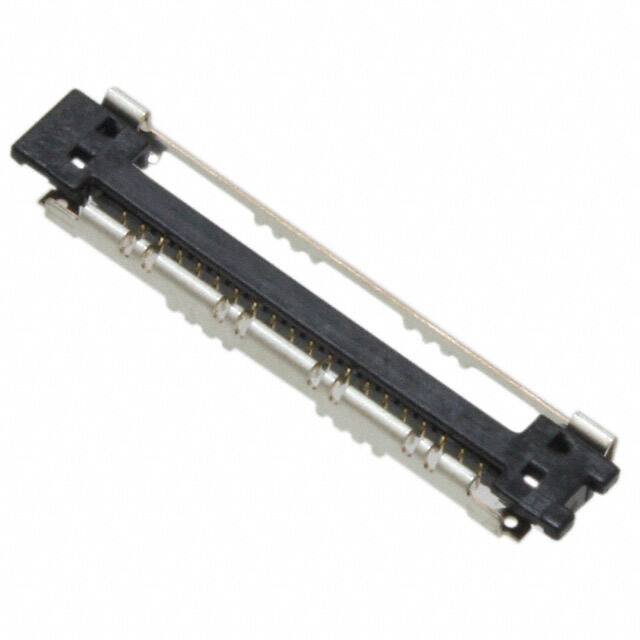

DF38A-40S-0.3V(51)

Teknik Özellikler

JESD-609 Kodu

e4

Insulation Color

Black

Number Of Conductors

ONE

Seri

DF38

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

FEMALE

Insulation Height

0.059 1.50mm

Contact Finish Thickness Post

3.90μin 0.099μm

Montaj

Surface Mount

Pitch Mating

0.012 0.30mm

Montaj Tipi

Surface Mount

Current Rating Amps

Varies by WireGAuge

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

30VAC

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes

Contact Resistance

80mOhm

Contact Finish Mating

Gold

Number Of Pcb Rows

2

Insulation Resistance

50000000Ohm

Reference Standard

UL

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Total Number Of Contacts

40

Style

Board to Cable/Wire

Pozisyon Sayısı

40

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-35°C~85°C

Connector Type

Receptacle

Özellikler

Pick and Place, Solder Retention

Parça Durumu

Active

Terminal Adımı

0.3mm

Contact Finish Thickness Mating

3.90μin 0.099μm

RoHS Durumu

RoHS Compliant

Din Conformance

NO
