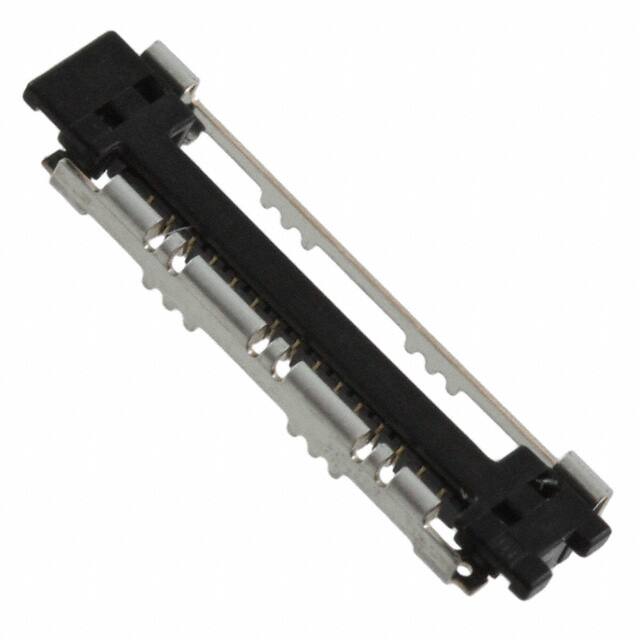

DF38A-30S-0.3V(51)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Type

Center Strip Contact

Mixed Contacts

NO

Insulation Materials

Liquid Crystal Polymer (LCP), Halogen Free

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Terminal

Solder

Özellikler

Pick and Place, Solder Retention

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

3.90μin 0.099μm

Terminal Adımı

0.3mm

Style

Board to Cable/Wire

Pozisyon Sayısı

30

Total Number Of Contacts

30

Çalışma Sıcaklığı

-35°C~85°C

Connector Type

Receptacle

Reliability

COMMERCIAL

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

2

Insulation Resistance

50000000Ohm

Mil Conformance

NO

Nominal Gerilim

30VAC

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Mating

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

80mOhm

Kurşunsuz Kodu

yes

Contact Finish Thickness Post

3.90μin 0.099μm

Montaj

Surface Mount
